ETMA150200UD-P5RP-IC by cui inc.
Image is representational - see mfr. specs
DATA SHEET

ETMA150200UD-P5RP-IC

CUI Inc.

AC/DC Adapter - Desktop - 30 Watts : 15V @ 2A - C8 Input - Medical - Lvl V

RoHS Compliant
Box Packaging
Accessories
Discontinued & Replaced
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
CUI Inc.
Part No:
ETMA150200UD-P5RP-IC
RoHS:
Yes
HTS:
8504409510
COO:
CN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
50
Package Type:
Box
Maximum Input Current:
Not Spec'd
Adapter Color:
Black
Dimension:
110 x 50 x 30 mm
DC Input Voltage:
Not App
Input/Output Type:
AC/DC
Overload Protection:
No
Number of Outputs:
1
Efficiency:
Not Spec'd
Power Rating:
30 W
Package Type:
Desktop
Style:
Desktop Adapter
Dimensions LxWxH:
4.33 x 1.99 x1.19 in
Output Current:
2.0 A
Short Circuit Protection:
Yes
Typical Inrush Current:
50A(Max) at 240Vac
Ripple & Noise:
150 mV
Input Voltage:
90 to 264Vac
Power Indicator:
Yes
Dimensions L x W x H:
110.0 x 50.0 x 30.0 mm
Minimum AC Input Voltage:
90
Minimum Isolation Voltage:
5656Vdc
Maximum AC Input Voltage:
264
MOPP:
Not App
Maximum Output Current:
2.0 A
Family:
ETMA-30W
Over Voltage Protection:
Yes
Thermal Protection:
No
Maximum Input Voltage:
264Vac
Output Cord Length:
1.8m (70.9in)
Minimum Input Voltage:
90Vac
Power:
30 W
Grade:
Medical
PFC:
No
CoC Tier:
No
AC Input Current - Typical:
Not Spec'd
DOE Efficiency Level:
V
Output Voltage:
15 VDC
Operating Temperature:
0 to 40 °C
AC Input Current - Maximum:
0.6A
Safety Approvals:
CE, cUL, TUV, UL
Output Connector Polarity:
Center Positive
Typical Hold-Up Time:
16 ms
Output Connector Diameters:
2.1 x 5.5 mm
Minimum Load (Amps):
0
Output Connector Type:
Barrel - Female
Mounting Style:
External
Maximum DC Input Voltage:
Not App
Maximum Output Power:
30 W
Output Connector Angle:
Right Angle
Output Type:
Fixed
Safety Class:
None
Input Frequency:
47 to 63 Hz
Input Connector Type:
IEC 320-C8
AC Input Voltage:
90 to 264
Mounting:
External
Type:
Regulated-Switching
Line Regulation:
1.00 %
Special Features:
Low Leakage Current
Minimum DC Input Voltage:
Not App
Dimensions L x W x H(in):
4.33 x 1.99 x 1.19 in
Load Regulation:
3.00 %
Life Cycle:
Discontinued & Replaced
AC/DC Adapter - Desktop - 30 Watts : 15V @ 2A - C8 Input - Medical - Lvl V
Search Keywords:
ETMA150200UDP5RPIC
  This product is not in stock and cannot be back-ordered
Please Note: Tariffs may apply for U.S. shipments

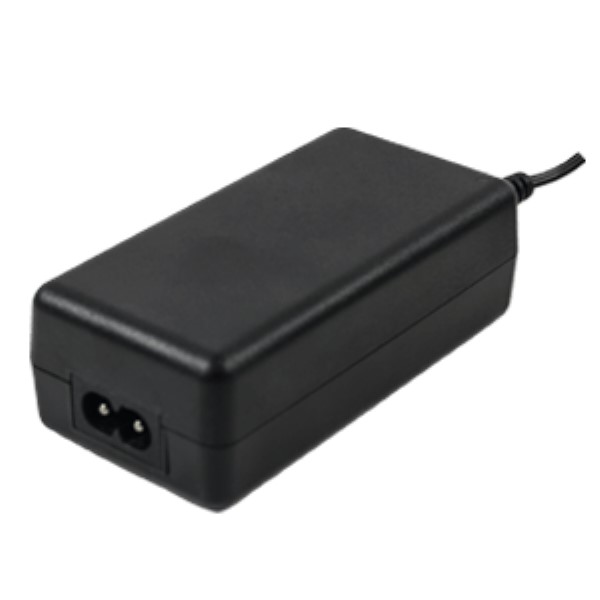

RECOMMENDED REPLACEMENT
SDM36-15-UD-P5R
SDM36-15-UD-P5R
VIEW PRODUCT
Product Guides
PDF 3D Model
PDF Datasheet
