ETMA120250UD-P5RP-IC by cui inc.
Image is representational - see mfr. specs
DATA SHEET

ETMA120250UD-P5RP-IC

CUI Inc.

AC/DC Adapter - Desktop - 30 Watts: 12V @ 2.5A - C8 Input - Medical - Lvl V

RoHS Compliant
Box Packaging
Accessories
Discontinued & Replaced
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
CUI Inc.
Part No:
ETMA120250UD-P5RP-IC
RoHS:
Yes
HTS:
8504409510
COO:
CN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
50
Package Type:
Box
Power:
30 W
Input Frequency:
47 to 63 Hz
Grade:
Medical
Ripple & Noise:
120 mV
Power Rating:
30 W
Minimum AC Input Voltage:
90
MOPP:
Not App
Number of Outputs:
1
DOE Efficiency Level:
V
Minimum Load (Amps):
0
Input Voltage:
90 to 264Vac
Type:
Regulated-Switching
AC Input Voltage:
90 to 264
Minimum Isolation Voltage:
5656Vdc
AC Input Current - Maximum:
0.6A
Typical Inrush Current:
50A(Max) at 240Vac
AC Input Current - Typical:
Not Spec'd
Output Connector Diameters:
2.1 x 5.5 mm
Family:
ETMA-30W
Mounting Style:
External
Operating Temperature:
0 to 40 °C
Power Indicator:
Yes
Over Voltage Protection:
Yes
Maximum DC Input Voltage:
Not App
Dimensions L x W x H:
110.0 x 50.0 x 30.0 mm
Output Current:
2.5 A
Load Regulation:
3.00 %
Thermal Protection:
No
Maximum Output Current:
2.5 A
PFC:
No
Style:
Desktop Adapter
Maximum Input Current:
Not Spec'd
Dimensions L x W x H(in):
4.33 x 1.99 x 1.19 in
Safety Approvals:
CE, cUL, TUV, UL
Output Connector Polarity:
Center Positive
DC Input Voltage:
Not App
Efficiency:
Not Spec'd
Overload Protection:
No
Mounting:
External
Minimum DC Input Voltage:
Not App
Adapter Color:
Black
Dimension:
110 x 50 x 30 mm
Output Type:
Fixed
Output Connector Type:
Barrel - Female
Input Connector Type:
IEC 320-C8
Input/Output Type:
AC/DC
Short Circuit Protection:
Yes
Output Cord Length:
1.8m (70.9in)
Dimensions LxWxH:
4.33 x 1.99 x1.19 in
Maximum Output Power:
30 W
Maximum Input Voltage:
264Vac
Line Regulation:
1.00 %
Safety Class:
None
Typical Hold-Up Time:
16 ms
Package Type:
Desktop
Special Features:
Low Leakage Current
Maximum AC Input Voltage:
264
Minimum Input Voltage:
90Vac
CoC Tier:
No
Output Connector Angle:
Right Angle
Output Voltage:
12 VDC
Life Cycle:
Discontinued & Replaced
AC/DC Adapter - Desktop - 30 Watts: 12V @ 2.5A - C8 Input - Medical - Lvl V
Search Keywords:
ETMA120250UDP5RPIC
  This product is not in stock and cannot be back-ordered
Please Note: Tariffs may apply for U.S. shipments

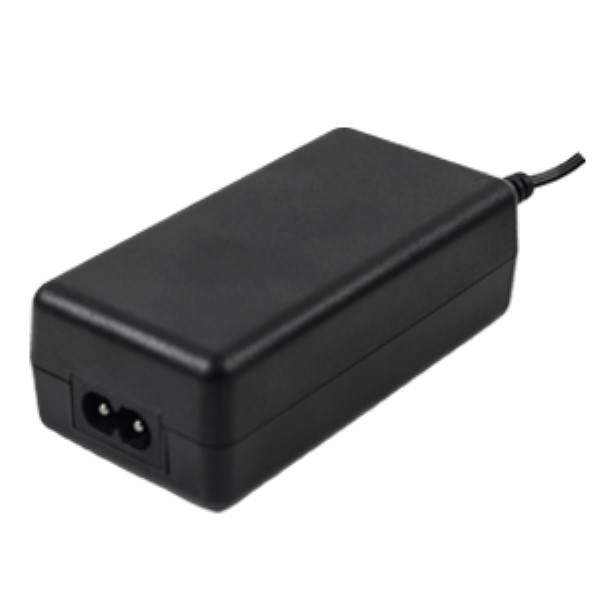

RECOMMENDED REPLACEMENT
SDM36-12-UD-P5R
SDM36-12-UD-P5R
VIEW PRODUCT
Product Guides
PDF 3D Model
PDF Datasheet
