ETMA090300UD-P6RP-IC by cui inc.
Image is representational - see mfr. specs
DATA SHEET

ETMA090300UD-P6RP-IC

CUI Inc.

AC/DC Adapter - Desktop - 30 Watts: 9V @ 3A - C8 Input - Medical - Lvl V

RoHS Compliant
Box Packaging
Accessories
Discontinued & Replaced
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
CUI Inc.
Part No:
ETMA090300UD-P6RP-IC
RoHS:
Yes
HTS:
8504409510
COO:
CN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
50
Package Type:
Box
Minimum Input Voltage:
90Vac
Input Connector Type:
IEC 320-C8
Minimum AC Input Voltage:
90
Dimensions LxWxH:
4.33 x 1.99 x1.19 in
Safety Class:
None
Maximum Input Current:
Not Spec'd
Grade:
Medical
Output Voltage:
9 VDC
Maximum Output Current:
3.0 A
Minimum DC Input Voltage:
Not App
Mounting Style:
External
Power:
27 W
Typical Inrush Current:
50A(Max) at 240Vac
Dimensions L x W x H:
110.0 x 50.0 x 30.0 mm
Adapter Color:
Black
Minimum Isolation Voltage:
5656Vdc
AC Input Current - Typical:
Not Spec'd
Line Regulation:
1.00 %
Ripple & Noise:
120 mV
Package Type:
Desktop
Type:
Regulated-Switching
Mounting:
External
Dimensions L x W x H(in):
4.33 x 1.99 x 1.19 in
Operating Temperature:
0 to 40 °C
Output Current:
3.0 A
Style:
Desktop Adapter
Output Cord Length:
1.22m (48.0in)
Thermal Protection:
No
PFC:
No
CoC Tier:
No
Maximum Input Voltage:
264Vac
Output Type:
Fixed
Overload Protection:
No
DC Input Voltage:
Not App
Short Circuit Protection:
Yes
Safety Approvals:
CE, cUL, TUV, UL
Input/Output Type:
AC/DC
Family:
ETMA-30W
Power Rating:
27 W
AC Input Current - Maximum:
0.6A
Input Frequency:
47 to 63 Hz
Output Connector Angle:
Right Angle
AC Input Voltage:
90 to 264
Dimension:
110 x 50 x 30 mm
Special Features:
Low Leakage Current
Number of Outputs:
1
Output Connector Type:
Barrel - Female
Maximum AC Input Voltage:
264
Output Connector Polarity:
Center Positive
Maximum Output Power:
27 W
Power Indicator:
Yes
Minimum Load (Amps):
0
Maximum DC Input Voltage:
Not App
Over Voltage Protection:
Yes
Efficiency:
Not Spec'd
Load Regulation:
5.00 %
DOE Efficiency Level:
V
Output Connector Diameters:
2.5 x 5.5 mm
MOPP:
Not App
Input Voltage:
90 to 264Vac
Typical Hold-Up Time:
16 ms
Life Cycle:
Discontinued & Replaced
AC/DC Adapter - Desktop - 30 Watts: 9V @ 3A - C8 Input - Medical - Lvl V
Search Keywords:
ETMA090300UDP6RPIC
  This product is not in stock and cannot be back-ordered
Please Note: Tariffs may apply for U.S. shipments

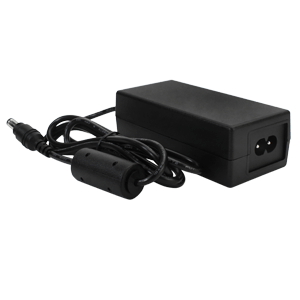

RECOMMENDED REPLACEMENT
