ETMA090300UD-P5RP-IC by cui inc.
Image is representational - see mfr. specs
DATA SHEET

ETMA090300UD-P5RP-IC

CUI Inc.

AC/DC Adapter - Desktop - 30 Watts: 9V @ 3A - C8 Input - Medical - Lvl V

RoHS Compliant
Box Packaging
Accessories
Discontinued & Replaced
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
CUI Inc.
Part No:
ETMA090300UD-P5RP-IC
RoHS:
Yes
HTS:
8504409510
COO:
CN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
50
Package Type:
Box
Over Voltage Protection:
Yes
Grade:
Medical
Output Connector Type:
Barrel - Female
Dimensions L x W x H(in):
4.33 x 1.99 x 1.19 in
Minimum AC Input Voltage:
90
Input Frequency:
47 to 63 Hz
Minimum Input Voltage:
90Vac
Line Regulation:
1.00 %
Thermal Protection:
No
Adapter Color:
Black
Special Features:
Low Leakage Current
Mounting:
External
Output Connector Polarity:
Center Positive
AC Input Voltage:
90 to 264
Output Type:
Fixed
Minimum Load (Amps):
0
Output Current:
3.0 A
DOE Efficiency Level:
V
Minimum DC Input Voltage:
Not App
Maximum Output Power:
27 W
AC Input Current - Maximum:
0.6A
Safety Class:
None
Output Connector Diameters:
2.1 x 5.5 mm
Power Indicator:
Yes
Ripple & Noise:
90 mV
Maximum Output Current:
3.0 A
Typical Inrush Current:
50A(Max) at 240Vac
MOPP:
Not App
AC Input Current - Typical:
Not Spec'd
Package Type:
Desktop
Type:
Regulated-Switching
Typical Hold-Up Time:
16 ms
Input/Output Type:
AC/DC
Mounting Style:
External
Overload Protection:
No
Output Cord Length:
1.22m (48.0in)
Power Rating:
27 W
Style:
Desktop Adapter
Family:
ETMA-30W
Output Connector Angle:
Right Angle
Load Regulation:
5.00 %
Dimensions LxWxH:
4.33 x 1.99 x1.19 in
Efficiency:
Not Spec'd
Power:
27 W
CoC Tier:
No
Safety Approvals:
CE, cUL, TUV, UL
DC Input Voltage:
Not App
Dimension:
110 x 50 x 30 mm
PFC:
No
Maximum AC Input Voltage:
264
Dimensions L x W x H:
110.0 x 50.0 x 30.0 mm
Input Voltage:
90 to 264Vac
Output Voltage:
9 VDC
Maximum Input Voltage:
264Vac
Number of Outputs:
1
Operating Temperature:
0 to 40 °C
Short Circuit Protection:
Yes
Maximum DC Input Voltage:
Not App
Maximum Input Current:
Not Spec'd
Minimum Isolation Voltage:
5656Vdc
Input Connector Type:
IEC 320-C8
Life Cycle:
Discontinued & Replaced
AC/DC Adapter - Desktop - 30 Watts: 9V @ 3A - C8 Input - Medical - Lvl V
Search Keywords:
ETMA090300UDP5RPIC
  This product is not in stock and cannot be back-ordered
Please Note: Tariffs may apply for U.S. shipments

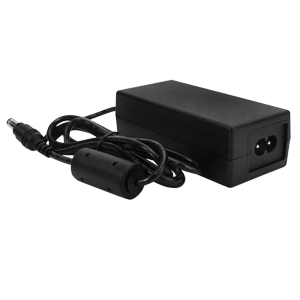

RECOMMENDED REPLACEMENT
SDM24-9-UD-P5R
SDM24-9-UD-P5R
VIEW PRODUCT
