ETMA090300UD-P5P-IC by cui inc.
Image is representational - see mfr. specs
DATA SHEET

ETMA090300UD-P5P-IC

CUI Inc.

AC/DC Adapter - Desktop - 30 Watts: 9V @ 3A - C8 Input - Medical - Lvl V

RoHS Compliant
Box Packaging
Accessories
Discontinued & Replaced
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
CUI Inc.
Part No:
ETMA090300UD-P5P-IC
RoHS:
Yes
HTS:
8504409510
COO:
TW
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
50
Package Type:
Box
Output Cord Length:
1.22m (48.0in)
Mounting:
External
Minimum DC Input Voltage:
Not App
DC Input Voltage:
Not App
Output Voltage:
9 VDC
Power:
27 W
Short Circuit Protection:
Yes
Efficiency:
Not Spec'd
Number of Outputs:
1
Package Type:
Desktop
Maximum Input Voltage:
264Vac
Maximum AC Input Voltage:
264
Input Frequency:
47 to 63 Hz
Style:
Desktop Adapter
Power Indicator:
Yes
Load Regulation:
5.00 %
Dimensions L x W x H(in):
4.33 x 1.99 x 1.19 in
Dimension:
110 x 50 x 30 mm
Thermal Protection:
No
DOE Efficiency Level:
V
Maximum Output Power:
27 W
Safety Class:
None
Grade:
Medical
Overload Protection:
No
Output Current:
3.0 A
Adapter Color:
Black
Minimum Isolation Voltage:
5656Vdc
Dimensions LxWxH:
4.33 x 1.99 x1.19 in
PFC:
No
Operating Temperature:
0 to 40 °C
Dimensions L x W x H:
110.0 x 50.0 x 30.0 mm
Safety Approvals:
CE, cUL, TUV, UL
Typical Inrush Current:
50A(Max) at 240Vac
Output Connector Angle:
Straight
Family:
ETMA-30W
AC Input Current - Maximum:
0.6A
Output Connector Polarity:
Center Positive
Input Voltage:
90 to 264Vac
Output Connector Diameters:
2.1 x 5.5 mm
Minimum Input Voltage:
90Vac
Maximum Input Current:
Not Spec'd
Output Type:
Fixed
Output Connector Type:
Barrel - Female
Input Connector Type:
IEC 320-C8
Input/Output Type:
AC/DC
Maximum DC Input Voltage:
Not App
Maximum Output Current:
3.0 A
Special Features:
Low Leakage Current
Mounting Style:
External
Line Regulation:
1.00 %
Ripple & Noise:
90 mV
MOPP:
Not App
AC Input Current - Typical:
Not Spec'd
Power Rating:
27 W
Typical Hold-Up Time:
16 ms
Over Voltage Protection:
Yes
Type:
Regulated-Switching
Minimum AC Input Voltage:
90
AC Input Voltage:
90 to 264
Minimum Load (Amps):
0
CoC Tier:
No
Life Cycle:
Discontinued & Replaced
AC/DC Adapter - Desktop - 30 Watts: 9V @ 3A - C8 Input - Medical - Lvl V
Search Keywords:
ETMA090300UDP5PIC
  This product is not in stock and cannot be back-ordered
Please Note: Tariffs may apply for U.S. shipments

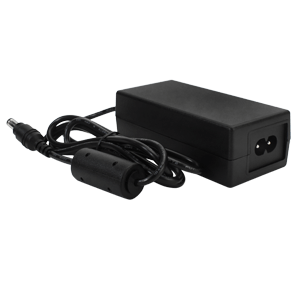

RECOMMENDED REPLACEMENT
SDM24-9-UD-P5
SDM24-9-UD-P5
VIEW PRODUCT
Product Guides
PDF 3D Model
PDF Datasheet
