ETMA050400UD-P6RP-IC by cui inc.
Image is representational - see mfr. specs
DATA SHEET

ETMA050400UD-P6RP-IC

CUI Inc.

AC/DC Adapter - Desktop - 30 Watts: 5V @ 4A - C8 Input - Medical - Lvl V

RoHS Compliant
Box Packaging
Accessories
Discontinued & Replaced
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
CUI Inc.
Part No:
ETMA050400UD-P6RP-IC
RoHS:
Yes
HTS:
8504409510
COO:
CN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
50
Package Type:
Box
Ripple & Noise:
50 mV
DOE Efficiency Level:
V
Minimum Load (Amps):
0
Type:
Regulated-Switching
Typical Hold-Up Time:
16 ms
AC Input Voltage:
90 to 264
AC Input Current - Maximum:
0.6A
MOPP:
Not App
AC Input Current - Typical:
Not Spec'd
Power Rating:
20 W
Family:
ETMA-30W
Maximum DC Input Voltage:
Not App
Input Voltage:
90 to 264Vac
Input Connector Type:
IEC 320-C8
Special Features:
Low Leakage Current
Output Cord Length:
720mm (28.4in)
Dimensions L x W x H:
110.0 x 50.0 x 30.0 mm
Operating Temperature:
0 to 40 °C
Over Voltage Protection:
Yes
Mounting Style:
External
Power Indicator:
Yes
Input Frequency:
47 to 63 Hz
Minimum AC Input Voltage:
90
Style:
Desktop Adapter
Efficiency:
Not Spec'd
DC Input Voltage:
Not App
Maximum Output Current:
4.0 A
Minimum Input Voltage:
90Vac
Safety Class:
None
Overload Protection:
No
Package Type:
Desktop
Maximum Output Power:
20 W
Minimum Isolation Voltage:
5656Vdc
Output Type:
Fixed
Maximum Input Current:
Not Spec'd
Line Regulation:
1.00 %
Safety Approvals:
CE, cUL, TUV, UL
Power:
20 W
Thermal Protection:
No
Dimension:
110 x 50 x 30 mm
Input/Output Type:
AC/DC
Typical Inrush Current:
50A(Max) at 240Vac
Number of Outputs:
1
Short Circuit Protection:
Yes
Maximum AC Input Voltage:
264
Dimensions LxWxH:
4.33 x 1.99 x1.19 in
Minimum DC Input Voltage:
Not App
Adapter Color:
Black
Output Connector Polarity:
Center Positive
CoC Tier:
No
Output Connector Type:
Barrel - Female
Grade:
Medical
Output Current:
4.0 A
PFC:
No
Mounting:
External
Maximum Input Voltage:
264Vac
Output Voltage:
5 VDC
Output Connector Angle:
Right Angle
Dimensions L x W x H(in):
4.33 x 1.99 x 1.19 in
Output Connector Diameters:
2.5 x 5.5 mm
Load Regulation:
6.00 %
Life Cycle:
Discontinued & Replaced
AC/DC Adapter - Desktop - 30 Watts: 5V @ 4A - C8 Input - Medical - Lvl V
Search Keywords:
ETMA050400UDP6RPIC
  This product is not in stock and cannot be back-ordered
Please Note: Tariffs may apply for U.S. shipments

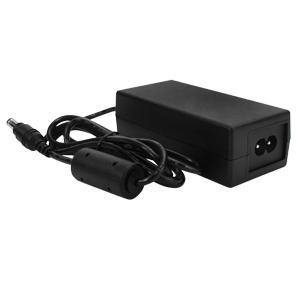

RECOMMENDED REPLACEMENT
SDM24-5-UD-P6R
SDM24-5-UD-P6R
VIEW PRODUCT
Product Guides
PDF 3D Model
PDF Datasheet
