ETMA050400UD-P6P-IC by cui inc.
Image is representational - see mfr. specs
DATA SHEET

ETMA050400UD-P6P-IC

CUI Inc.

AC/DC Adapter - Desktop - 30 Watts: 5V @ 4A - C8 Input - Medical - Lvl V

RoHS Compliant
Box Packaging
Accessories
Discontinued & Replaced
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
CUI Inc.
Part No:
ETMA050400UD-P6P-IC
RoHS:
Yes
HTS:
8504409510
COO:
CN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
50
Package Type:
Box
Power Indicator:
Yes
Load Regulation:
6.00 %
Dimensions LxWxH:
4.33 x 1.99 x1.19 in
Over Voltage Protection:
Yes
Maximum AC Input Voltage:
264
Mounting:
External
Adapter Color:
Black
Package Type:
Desktop
Maximum Input Current:
Not Spec'd
Output Voltage:
5 VDC
Operating Temperature:
0 to 40 °C
DOE Efficiency Level:
V
PFC:
No
Output Connector Diameters:
2.5 x 5.5 mm
Output Current:
4.0 A
Grade:
Medical
Style:
Desktop Adapter
Minimum Input Voltage:
90Vac
Output Connector Angle:
Straight
Family:
ETMA-30W
Efficiency:
Not Spec'd
Type:
Regulated-Switching
Minimum Isolation Voltage:
5656Vdc
Input Voltage:
90 to 264Vac
Output Connector Type:
Barrel - Female
Ripple & Noise:
50 mV
Number of Outputs:
1
Maximum Output Power:
20 W
Output Connector Polarity:
Center Positive
Dimensions L x W x H:
110.0 x 50.0 x 30.0 mm
Input/Output Type:
AC/DC
Minimum DC Input Voltage:
Not App
Power:
20 W
Dimensions L x W x H(in):
4.33 x 1.99 x 1.19 in
Overload Protection:
No
Output Type:
Fixed
Short Circuit Protection:
Yes
MOPP:
Not App
Maximum Output Current:
4.0 A
Line Regulation:
1.00 %
Special Features:
Low Leakage Current
Typical Inrush Current:
50A(Max) at 240Vac
Safety Class:
None
DC Input Voltage:
Not App
Thermal Protection:
No
AC Input Current - Typical:
Not Spec'd
Input Frequency:
47 to 63 Hz
AC Input Voltage:
90 to 264
Maximum Input Voltage:
264Vac
Maximum DC Input Voltage:
Not App
Safety Approvals:
CE, cUL, TUV, UL
Input Connector Type:
IEC 320-C8
Dimension:
110 x 50 x 30 mm
Minimum Load (Amps):
0
Typical Hold-Up Time:
16 ms
Output Cord Length:
720mm (28.4in)
AC Input Current - Maximum:
0.6A
Power Rating:
20 W
Mounting Style:
External
Minimum AC Input Voltage:
90
CoC Tier:
No
Life Cycle:
Discontinued & Replaced
AC/DC Adapter - Desktop - 30 Watts: 5V @ 4A - C8 Input - Medical - Lvl V
Search Keywords:
ETMA050400UDP6PIC
  This product is not in stock and cannot be back-ordered
Please Note: Tariffs may apply for U.S. shipments

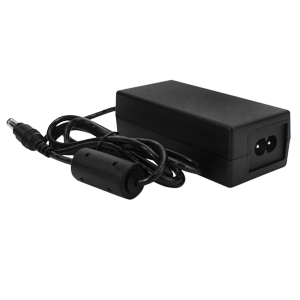

RECOMMENDED REPLACEMENT
