ETMA050400UD-P5RP-IC by cui inc.
Image is representational - see mfr. specs
DATA SHEET

ETMA050400UD-P5RP-IC

CUI Inc.

AC/DC Adapter - Desktop - 30 Watts: 5V @ 4A - C8 Input - Medical - Lvl V

RoHS Compliant
Box Packaging
Accessories
Discontinued & Replaced
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
CUI Inc.
Part No:
ETMA050400UD-P5RP-IC
RoHS:
Yes
HTS:
8504409510
COO:
CN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
50
Package Type:
Box
Output Cord Length:
720mm (28.4in)
Input Frequency:
47 to 63 Hz
Output Connector Angle:
Right Angle
Maximum Input Voltage:
264Vac
PFC:
No
DOE Efficiency Level:
V
Output Connector Polarity:
Center Positive
Input/Output Type:
AC/DC
Output Current:
4.0 A
Output Connector Type:
Barrel - Female
MOPP:
Not App
Power Rating:
20 W
Minimum Load (Amps):
0
Maximum Output Current:
4.0 A
AC Input Current - Typical:
Not Spec'd
Minimum Isolation Voltage:
5656Vdc
Safety Class:
None
Output Type:
Fixed
Input Connector Type:
IEC 320-C8
Ripple & Noise:
50 mV
AC Input Current - Maximum:
0.6A
Maximum Input Current:
Not Spec'd
AC Input Voltage:
90 to 264
DC Input Voltage:
Not App
Short Circuit Protection:
Yes
Family:
ETMA-30W
Maximum Output Power:
20 W
Efficiency:
Not Spec'd
Thermal Protection:
No
Dimensions LxWxH:
4.33 x 1.99 x1.19 in
Special Features:
Low Leakage Current
Minimum AC Input Voltage:
90
Mounting Style:
External
Style:
Desktop Adapter
Line Regulation:
1.00 %
Dimensions L x W x H:
110.0 x 50.0 x 30.0 mm
Power:
20 W
Operating Temperature:
0 to 40 °C
Safety Approvals:
CE, cUL, TUV, UL
Maximum DC Input Voltage:
Not App
Minimum Input Voltage:
90Vac
Dimensions L x W x H(in):
4.33 x 1.99 x 1.19 in
Over Voltage Protection:
Yes
Maximum AC Input Voltage:
264
Overload Protection:
No
Dimension:
110 x 50 x 30 mm
Output Voltage:
5 VDC
Adapter Color:
Black
Typical Inrush Current:
50A(Max) at 240Vac
Number of Outputs:
1
Typical Hold-Up Time:
16 ms
Minimum DC Input Voltage:
Not App
Type:
Regulated-Switching
Input Voltage:
90 to 264Vac
Grade:
Medical
Output Connector Diameters:
2.1 x 5.5 mm
Package Type:
Desktop
CoC Tier:
No
Mounting:
External
Power Indicator:
Yes
Load Regulation:
6.00 %
Life Cycle:
Discontinued & Replaced
AC/DC Adapter - Desktop - 30 Watts: 5V @ 4A - C8 Input - Medical - Lvl V
Search Keywords:
ETMA050400UDP5RPIC
  This product is not in stock and cannot be back-ordered
Please Note: Tariffs may apply for U.S. shipments

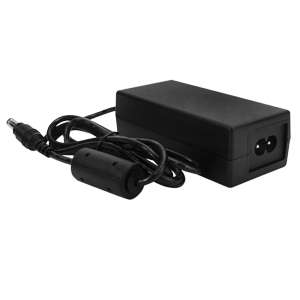

RECOMMENDED REPLACEMENT
SDM24-5-UD-P5R
SDM24-5-UD-P5R
VIEW PRODUCT
