EPSA240100U-P5P-SZ by cui inc.
Image is representational - see mfr. specs

EPSA240100U-P5P-SZ

CUI Inc.

AC/DC Adapter - Wall Mount - 24 Watts: 24V @ 1A - NA Blades - Lvl V

RoHS Compliant
Packaging
Accessories
Discontinued & Replaced
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
CUI Inc.
Part No:
EPSA240100U-P5P-SZ
RoHS:
Yes
HTS:
8504409510
COO:
CN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
DC Input Voltage:
Not App
Input/Output Type:
AC/DC
Power Rating:
24 W
Minimum Isolation Voltage:
4242Vdc/3000Vac
Maximum Input Voltage:
264Vac
Efficiency:
Not Spec'd
Load Regulation:
5.00 %
AC Input Current - Maximum:
0.8A
Grade:
Commercial
Number of Outputs:
1
Maximum Output Power:
24 W
Short Circuit Protection:
Yes
Overload Protection:
No
Output Voltage:
24 VDC
Power:
24 W
AC Input Current - Typical:
Not Spec'd
Dimensions L x W x H:
80.0 x 35.0 x 53.6 mm
Output Type:
Fixed
CoC Tier:
No
Typical Hold-Up Time:
Not Spec'd
Adapter Color:
Black
Output Connector Type:
Barrel - Female
Safety Class:
None
Power Indicator:
No
Output Connector Polarity:
Center Positive
DOE Efficiency Level:
V
Output Current:
1.0 A
Maximum DC Input Voltage:
Not App
AC Input Voltage:
90 to 264
PFC:
No
Safety Approvals:
cUL, UL
Operating Temperature:
0 to 40 °C
Over Voltage Protection:
No
Type:
Regulated-Switching
Dimensions L x W x H(in):
3.15 x 1.38 x 2.12 in
Typical Inrush Current:
50/100A(Max) at 115/230Vac
Dimensions LxWxH:
3.15 x 1.38 x 2.12 in
Maximum Input Current:
Not Spec'd
Maximum Output Current:
No
Input Voltage:
90 to 264Vac
Maximum AC Input Voltage:
264
Minimum Input Voltage:
90Vac
Output Cord Length:
1.53m (60.3in)
Minimum Load (Amps):
0
Minimum DC Input Voltage:
Not App
Line Regulation:
1.00 %
Thermal Protection:
No
Output Connector Diameters:
2.1 x 5.5 mm
Dimension:
80 x 35 x 53.6 mm
Style:
WallMount
Mounting:
External
Package Type:
Wall Plug
Mounting Style:
External
Ripple & Noise:
240 mV
Minimum AC Input Voltage:
90
Family:
EPSA-24W
MOPP:
Not App
Input Frequency:
47 to 63 Hz
Input Connector Type:
NA Blades (U.S. and Others)
Output Connector Angle:
Straight
Life Cycle:
Discontinued & Replaced
AC/DC Adapter - Wall Mount - 24 Watts: 24V @ 1A - NA Blades - Lvl V
Search Keywords:
EPSA240100UP5PSZ
  This product is not in stock and cannot be back-ordered
Please Note: Tariffs may apply for U.S. shipments

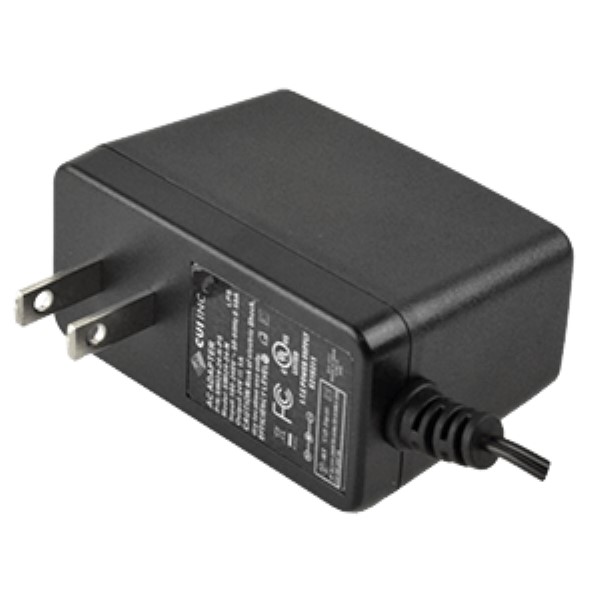

RECOMMENDED REPLACEMENT
SWI24-24-N-P5
SWI24-24-N-P5
VIEW PRODUCT
