EPSA120200U-P5RP-SZ by cui inc.
Image is representational - see mfr. specs

EPSA120200U-P5RP-SZ

CUI Inc.

AC/DC Adapter - Wall Mount - 24 Watts: 12V @ 2A - NA Blades - Lvl V

RoHS Compliant
Packaging
Accessories
Discontinued & Replaced
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
CUI Inc.
Part No:
EPSA120200U-P5RP-SZ
RoHS:
Yes
HTS:
8504409510
COO:
CN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Maximum DC Input Voltage:
Not App
Typical Hold-Up Time:
Not Spec'd
Safety Class:
None
Dimensions L x W x H(in):
3.15 x 1.38 x 2.12 in
Short Circuit Protection:
Yes
Mounting Style:
External
Package Type:
Wall Plug
Safety Approvals:
cUL, UL
Minimum AC Input Voltage:
90
Dimensions L x W x H:
80.0 x 35.0 x 53.6 mm
Output Cord Length:
1.53m (60.3in)
MOPP:
Not App
Output Voltage:
12 VDC
Number of Outputs:
1
Efficiency:
Not Spec'd
Maximum AC Input Voltage:
264
Overload Protection:
No
Adapter Color:
Black
DOE Efficiency Level:
V
Grade:
Commercial
Output Connector Angle:
Right Angle
Power Indicator:
No
Typical Inrush Current:
50/100A(Max) at 115/230Vac
Maximum Input Current:
Not Spec'd
Input/Output Type:
AC/DC
Input Connector Type:
NA Blades (U.S. and Others)
AC Input Voltage:
90 to 264
Power Rating:
24 W
Maximum Output Power:
24 W
AC Input Current - Typical:
Not Spec'd
Power:
24 W
Minimum DC Input Voltage:
Not App
Family:
EPSA-24W
Type:
Regulated-Switching
PFC:
No
Load Regulation:
5.00 %
Output Connector Type:
Barrel - Female
Thermal Protection:
No
Maximum Output Current:
No
Output Type:
Fixed
DC Input Voltage:
Not App
Input Voltage:
90 to 264Vac
Dimensions LxWxH:
3.15 x 1.38 x 2.12 in
Operating Temperature:
0 to 40 °C
Output Connector Diameters:
2.1 x 5.5 mm
Mounting:
External
Output Current:
2.0 A
Style:
WallMount
Minimum Load (Amps):
0
CoC Tier:
No
AC Input Current - Maximum:
0.8A
Minimum Isolation Voltage:
4242Vdc/3000Vac
Over Voltage Protection:
No
Input Frequency:
47 to 63 Hz
Ripple & Noise:
150 mV
Minimum Input Voltage:
90Vac
Maximum Input Voltage:
264Vac
Dimension:
80 x 35 x 53.6 mm
Line Regulation:
1.00 %
Output Connector Polarity:
Center Positive
Life Cycle:
Discontinued & Replaced
AC/DC Adapter - Wall Mount - 24 Watts: 12V @ 2A - NA Blades - Lvl V
Search Keywords:
EPSA120200UP5RPSZ
  This product is not in stock and cannot be back-ordered
Please Note: Tariffs may apply for U.S. shipments

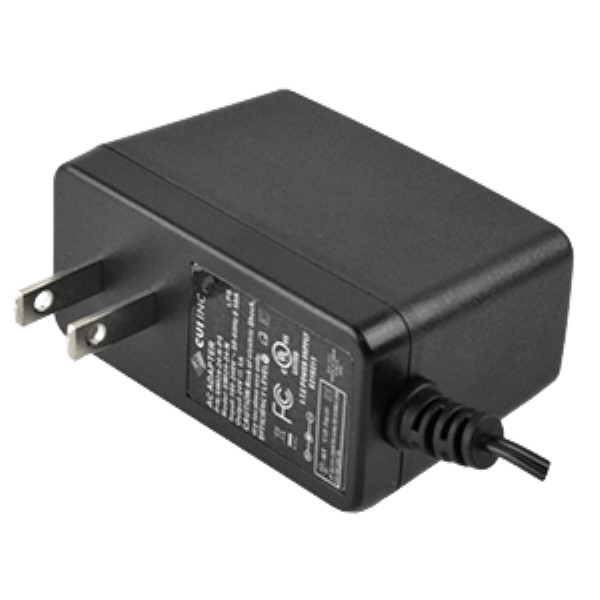

RECOMMENDED REPLACEMENT
SWI24-12-N-P5R
SWI24-12-N-P5R
