EPSA120150UE-P5P-EJ by cui inc.
Image is representational - see mfr. specs

EPSA120150UE-P5P-EJ

CUI Inc.

AC/DC Adapter - Wall Mount - 18 Watts: 12V @ 1.5A - EU Input Blades - Lvl V

RoHS Compliant
Packaging
Accessories
Discontinued & Replaced
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
CUI Inc.
Part No:
EPSA120150UE-P5P-EJ
RoHS:
Yes
HTS:
8504409510
COO:
CN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Type:
Regulated-Switching
Minimum Isolation Voltage:
3000Vac
AC Input Current - Typical:
Not Spec'd
MOPP:
Not App
AC Input Current - Maximum:
0.5A
Input Voltage:
90 to 264Vac
AC Input Voltage:
90 to 264
Load Regulation:
5.00 %
Output Connector Diameters:
2.1 x 5.5 mm
Minimum Load (Amps):
0
Minimum Input Voltage:
90Vac
Overload Protection:
Yes
Input Frequency:
47 to 63 Hz
Adapter Color:
Black
Operating Temperature:
0 to 40 °C
Ripple & Noise:
120 mV
Dimensions L x W x H(in):
2.96 x 1.38 x 2.17 in
CoC Tier:
No
Output Connector Type:
Barrel - Female
DOE Efficiency Level:
V
Output Current:
1.5 A
Power Indicator:
No
Power:
18 W
Output Connector Polarity:
Center Positive
Minimum DC Input Voltage:
Not App
Over Voltage Protection:
Yes
Thermal Protection:
No
Output Type:
Fixed
Safety Class:
None
Mounting:
External
Dimensions LxWxH:
2.96 x 1.38 x 2.17 in
Maximum DC Input Voltage:
Not App
Dimension:
75 x 35 x 55 mm
PFC:
No
Minimum AC Input Voltage:
90
Package Type:
Wall Plug
Short Circuit Protection:
Yes
Output Cord Length:
1.5m (59.1in)
Output Connector Angle:
Straight
Style:
WallMount
Family:
18W-Wall-EU-Blade
Typical Hold-Up Time:
10ms(Min)
Mounting Style:
External
Line Regulation:
5.00 %
Grade:
Commercial
Maximum Input Voltage:
264Vac
Output Voltage:
12 VDC
Typical Inrush Current:
30A(Max) at 115Vac
Maximum Output Current:
1.5 A
Safety Approvals:
CE, GS, TUV
Maximum AC Input Voltage:
264
Efficiency:
Not Spec'd
Input Connector Type:
EU Blades
Maximum Output Power:
18 W
Input/Output Type:
AC/DC
Dimensions L x W x H:
75.0 x 35.0 x 55.0 mm
Power Rating:
18 W
DC Input Voltage:
Not App
Maximum Input Current:
Not Spec'd
Number of Outputs:
1
Life Cycle:
Discontinued & Replaced
AC/DC Adapter - Wall Mount - 18 Watts: 12V @ 1.5A - EU Input Blades - Lvl V
Search Keywords:
EPSA120150UEP5PEJ
  This product is not in stock and cannot be back-ordered
Please Note: Tariffs may apply for U.S. shipments
RECOMMENDED REPLACEMENT

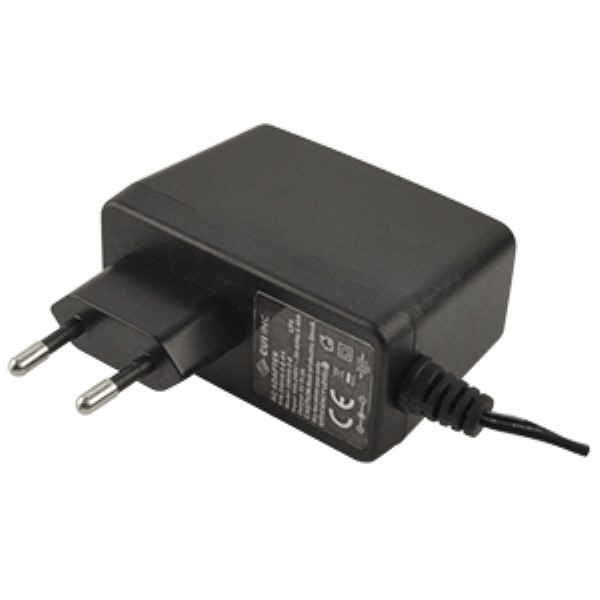

SWI18-12-E-P5
SWI18-12-E-P5
