EPSA120100U-P5RP-EJ by cui inc.
Image is representational - see mfr. specs

EPSA120100U-P5RP-EJ

CUI Inc.

AC/DC Adapter - Wall Mount - 12 Watts: 12V @ 1A - NA Blades - Lvl V

RoHS Compliant
Packaging
Accessories
Discontinued & Replaced
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
CUI Inc.
Part No:
EPSA120100U-P5RP-EJ
RoHS:
Yes
HTS:
8504409510
COO:
CN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Dimension:
75 x 35 x 47 mm
Safety Class:
None
Minimum Input Voltage:
90Vac
Thermal Protection:
No
Package Type:
Wall Plug
Maximum Input Current:
Not Spec'd
Output Type:
Fixed
Maximum DC Input Voltage:
Not App
Line Regulation:
5.00 %
Minimum DC Input Voltage:
Not App
MOPP:
Not App
Minimum AC Input Voltage:
90
Output Connector Type:
Barrel - Female
Family:
EPSA-12W
Maximum Output Current:
1.0 A
Over Voltage Protection:
Yes
Adapter Color:
Black
Style:
WallMount
AC Input Current - Maximum:
0.4A
Efficiency:
Not Spec'd
Short Circuit Protection:
Yes
Load Regulation:
5.00 %
Output Connector Angle:
Right Angle
Dimensions L x W x H(in):
2.96 x 1.38 x 1.85 in
Input Voltage:
90 to 264 VAC
Overload Protection:
Yes
AC Input Voltage:
90 to 264
Grade:
Commercial
CoC Tier:
No
Maximum AC Input Voltage:
264
Power Indicator:
No
Power Rating:
12 W
DC Input Voltage:
Not App
Output Voltage:
12 VDC
Dimensions L x W x H:
75.0 x 35.0 x 47.0 mm
AC Input Current - Typical:
Not Spec'd
DOE Efficiency Level:
V
Number of Outputs:
1
Operating Temperature:
0 to 40 °C
Safety Approvals:
cUL, UL
Input Connector Type:
NA Blades (U.S. and Others)
Input Frequency:
47 to 63 Hz
Power:
12 W
Output Connector Polarity:
Center Positive
Ripple & Noise:
120 mV
Maximum Output Power:
12 W
Minimum Load (Amps):
0
Maximum Input Voltage:
264Vac
Output Current:
1.0 A
Output Cord Length:
1.5m (59.1in)
Type:
Regulated-Switching
Dimensions LxWxH:
2.96 x 1.38 x 1.85 in
Input/Output Type:
AC/DC
Typical Inrush Current:
30A(Max)
Minimum Isolation Voltage:
3000Vac
Mounting Style:
External
Output Connector Diameters:
2.1 x 5.5 mm
Typical Hold-Up Time:
10ms(Min)
Mounting:
External
PFC:
No
Life Cycle:
Discontinued & Replaced
AC/DC Adapter - Wall Mount - 12 Watts: 12V @ 1A - NA Blades - Lvl V
Search Keywords:
EPSA120100UP5RPEJ
  This product is not in stock and cannot be back-ordered
Please Note: Tariffs may apply for U.S. shipments

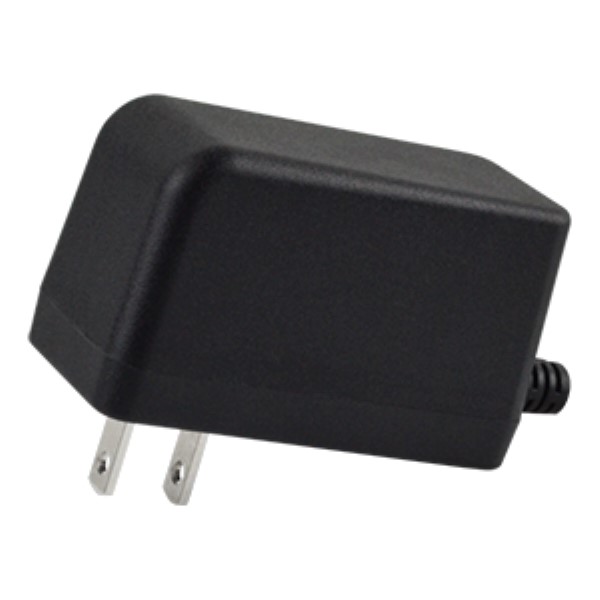

RECOMMENDED REPLACEMENT
SWI12-12-N-P5R
