EPSA120100U-P5P-EJ by cui inc.
Image is representational - see mfr. specs

EPSA120100U-P5P-EJ

CUI Inc.

AC/DC Adapter - Wall Mount - 12 Watts: 12V @ 1A - NA Blades - Lvl V

RoHS Compliant
Packaging
Accessories
Discontinued & Replaced
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
CUI Inc.
Part No:
EPSA120100U-P5P-EJ
RoHS:
Yes
HTS:
8504409510
COO:
CN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Short Circuit Protection:
Yes
CoC Tier:
No
Maximum Output Current:
1.0 A
Family:
EPSA-12W
Efficiency:
Not Spec'd
Dimensions L x W x H:
75.0 x 35.0 x 47.0 mm
Typical Inrush Current:
30A(Max)
Load Regulation:
5.00 %
Grade:
Commercial
DC Input Voltage:
Not App
Number of Outputs:
1
Input/Output Type:
AC/DC
Maximum Input Voltage:
264Vac
Output Voltage:
12 VDC
Input Voltage:
90 to 264 VAC
MOPP:
Not App
Minimum AC Input Voltage:
90
Power Indicator:
No
Dimensions LxWxH:
2.96 x 1.38 x 1.85 in
Minimum Isolation Voltage:
3000Vac
AC Input Current - Typical:
Not Spec'd
Output Current:
1.0 A
Line Regulation:
5.00 %
Maximum Input Current:
Not Spec'd
Output Connector Angle:
Straight
PFC:
No
Maximum DC Input Voltage:
Not App
Over Voltage Protection:
Yes
Type:
Regulated-Switching
Maximum Output Power:
12 W
Output Cord Length:
1.5m (59.1in)
Output Type:
Fixed
Input Frequency:
47 to 63 Hz
Power Rating:
12 W
Input Connector Type:
NA Blades (U.S. and Others)
Dimensions L x W x H(in):
2.96 x 1.38 x 1.85 in
Safety Class:
None
Maximum AC Input Voltage:
264
AC Input Current - Maximum:
0.4A
Minimum Load (Amps):
0
Output Connector Polarity:
Center Positive
Output Connector Diameters:
2.1 x 5.5 mm
Power:
12 W
Typical Hold-Up Time:
10ms(Min)
Dimension:
75 x 35 x 47 mm
Package Type:
Wall Plug
AC Input Voltage:
90 to 264
Minimum Input Voltage:
90Vac
Mounting Style:
External
Adapter Color:
Black
Safety Approvals:
cUL, UL
Operating Temperature:
0 to 40 °C
Ripple & Noise:
120 mV
DOE Efficiency Level:
V
Mounting:
External
Thermal Protection:
No
Style:
WallMount
Minimum DC Input Voltage:
Not App
Output Connector Type:
Barrel - Female
Overload Protection:
Yes
Life Cycle:
Discontinued & Replaced
AC/DC Adapter - Wall Mount - 12 Watts: 12V @ 1A - NA Blades - Lvl V
Search Keywords:
EPSA120100UP5PEJ
  This product is not in stock and cannot be back-ordered
Please Note: Tariffs may apply for U.S. shipments

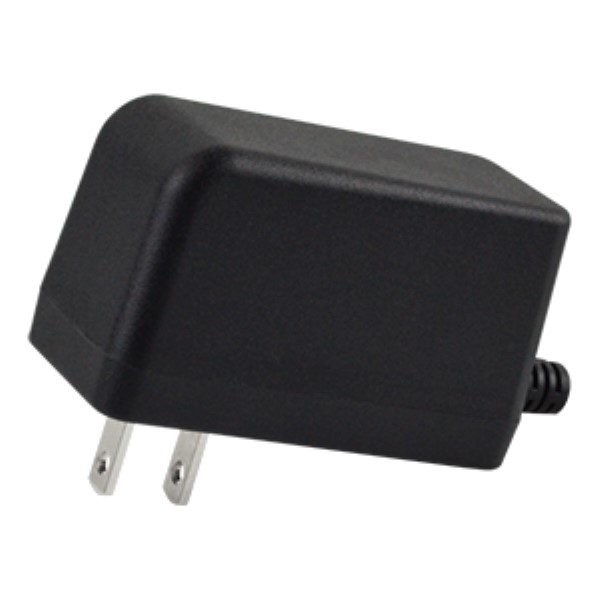

RECOMMENDED REPLACEMENT
SWI12-12-N-P5
SWI12-12-N-P5
VIEW PRODUCT
