EPSA120050U-P6P-SZ by cui inc.
Image is representational - see mfr. specs

EPSA120050U-P6P-SZ

CUI Inc.

AC/DC Adapter - Wall Mount - 6 Watts: 12V @ 0.5A - NA Blades - Lvl V

RoHS Compliant
Packaging
Accessories
Discontinued & Replaced
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
CUI Inc.
Part No:
EPSA120050U-P6P-SZ
RoHS:
Yes
HTS:
8504409510
COO:
CN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Minimum Load (Amps):
0
Safety Class:
None
Mounting Style:
External
Minimum Input Voltage:
90Vac
MOPP:
Not App
Package Type:
Wall Plug
Output Connector Type:
Barrel - Female
Line Regulation:
3.00 %
Over Voltage Protection:
Yes
PFC:
No
Input Connector Type:
NA Blades (U.S. and Others)
Maximum DC Input Voltage:
Not App
Output Type:
Fixed
Minimum DC Input Voltage:
Not App
Mounting:
External
Power Indicator:
No
AC Input Voltage:
90 to 264
Type:
Regulated-Switching
CoC Tier:
No
Input Voltage:
90 to 264Vac
Minimum AC Input Voltage:
90
Thermal Protection:
No
Typical Hold-Up Time:
Not Spec'd
Output Connector Polarity:
Center Positive
Dimensions L x W x H(in):
2.36 x 1.05 x 1.82 in
Typical Inrush Current:
Not Spec'd
Efficiency:
Not Spec'd
Maximum Input Current:
0.5 A
Load Regulation:
5.00 %
Maximum Output Current:
0.5 A
AC Input Current - Maximum:
0.5A
Output Cord Length:
1.53m (60.3in)
Style:
WallMount
Output Connector Diameters:
2.5 x 5.5 mm
Dimensions LxWxH:
2.36 x 1.05 x 1.82 in
Family:
EPSA-6W
Safety Approvals:
cUL, PSE, UL
DC Input Voltage:
Not App
Maximum AC Input Voltage:
264
Input Frequency:
47 to 63 Hz
Output Connector Angle:
Straight
Output Current:
0.5 A
Adapter Color:
Black
Power:
6 W
Output Voltage:
12 VDC
Dimensions L x W x H:
59.8 x 26.6 x 46.1 mm
Input/Output Type:
AC/DC
Power Rating:
6 W
AC Input Current - Typical:
Not Spec'd
Grade:
Commercial
Number of Outputs:
1
Minimum Isolation Voltage:
4242Vdc/3000Vac
DOE Efficiency Level:
V
Short Circuit Protection:
Yes
Maximum Output Power:
6 W
Operating Temperature:
0 to 40 °C
Maximum Input Voltage:
264Vac
Ripple & Noise:
150 mV
Dimension:
59.8 x 26.6 x 46.1 mm
Overload Protection:
No
Life Cycle:
Discontinued & Replaced
AC/DC Adapter - Wall Mount - 6 Watts: 12V @ 0.5A - NA Blades - Lvl V
Search Keywords:
EPSA120050UP6PSZ
  This product is not in stock and cannot be back-ordered
Please Note: Tariffs may apply for U.S. shipments

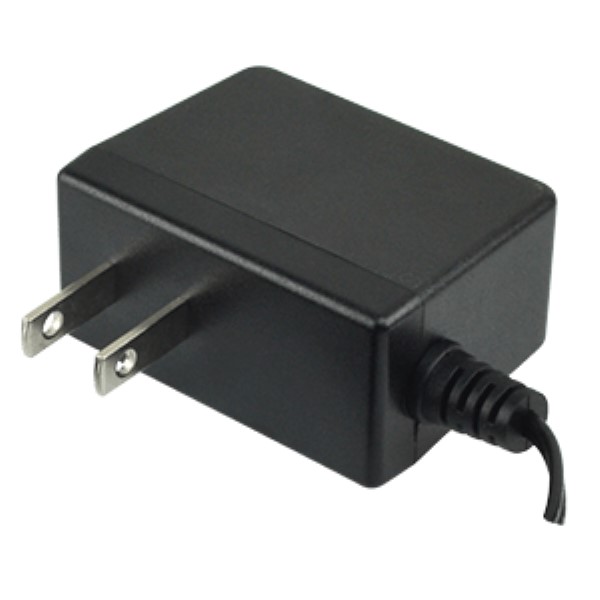

RECOMMENDED REPLACEMENT
SWI6-12-N-P6
SWI6-12-N-P6
VIEW PRODUCT
