EPSA050250U-P5RP-EJ by cui inc.
Image is representational - see mfr. specs

EPSA050250U-P5RP-EJ

CUI Inc.

AC/DC Adapter - Wall Mount - 12 Watts: 5V @ 2.5A - NA Blades - Lvl V

RoHS Compliant
Packaging
Accessories
Discontinued & Replaced
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
CUI Inc.
Part No:
EPSA050250U-P5RP-EJ
RoHS:
Yes
HTS:
8504409510
COO:
CN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Minimum Input Voltage:
90Vac
Output Type:
Fixed
Safety Class:
None
Minimum Load (Amps):
0
Output Connector Type:
Barrel - Female
Thermal Protection:
No
AC Input Voltage:
90 to 264
Output Current:
2.5 A
Over Voltage Protection:
Yes
Dimensions L x W x H(in):
2.96 x 1.38 x 1.85 in
Minimum Isolation Voltage:
3000Vac
Family:
EPSA-12W
Maximum Input Current:
Not Spec'd
Output Connector Polarity:
Center Positive
Output Voltage:
5 VDC
CoC Tier:
No
Output Cord Length:
1.5m (59.1in)
DC Input Voltage:
Not App
PFC:
No
Short Circuit Protection:
Yes
Output Connector Angle:
Right Angle
Power Rating:
12.5 W
AC Input Current - Typical:
Not Spec'd
Minimum DC Input Voltage:
Not App
Input Frequency:
47 to 63 Hz
Dimensions LxWxH:
2.96 x 1.38 x 1.85 in
Dimensions L x W x H:
75.0 x 35.0 x 47.0 mm
Grade:
Commercial
Adapter Color:
Black
AC Input Current - Maximum:
0.4A
Typical Hold-Up Time:
10ms(Min)
Maximum Output Power:
12.5 W
Mounting Style:
External
Load Regulation:
5.00 %
Dimension:
75 x 35 x 47 mm
Ripple & Noise:
50 mV
Style:
WallMount
Power Indicator:
No
DOE Efficiency Level:
V
Efficiency:
Not Spec'd
Number of Outputs:
1
Maximum Input Voltage:
264Vac
Operating Temperature:
0 to 40 °C
Input Connector Type:
NA Blades (U.S. and Others)
Power:
12.5 W
Input/Output Type:
AC/DC
Line Regulation:
5.00 %
Typical Inrush Current:
30A(Max)
Safety Approvals:
cUL, UL
Overload Protection:
Yes
Maximum AC Input Voltage:
264
Input Voltage:
90 to 264 VAC
Maximum DC Input Voltage:
Not App
Maximum Output Current:
2.5 A
Type:
Regulated-Switching
Output Connector Diameters:
2.1 x 5.5 mm
MOPP:
Not App
Minimum AC Input Voltage:
90
Mounting:
External
Package Type:
Wall Plug
Life Cycle:
Discontinued & Replaced
AC/DC Adapter - Wall Mount - 12 Watts: 5V @ 2.5A - NA Blades - Lvl V
Search Keywords:
EPSA050250UP5RPEJ
  This product is not in stock and cannot be back-ordered
Please Note: Tariffs may apply for U.S. shipments

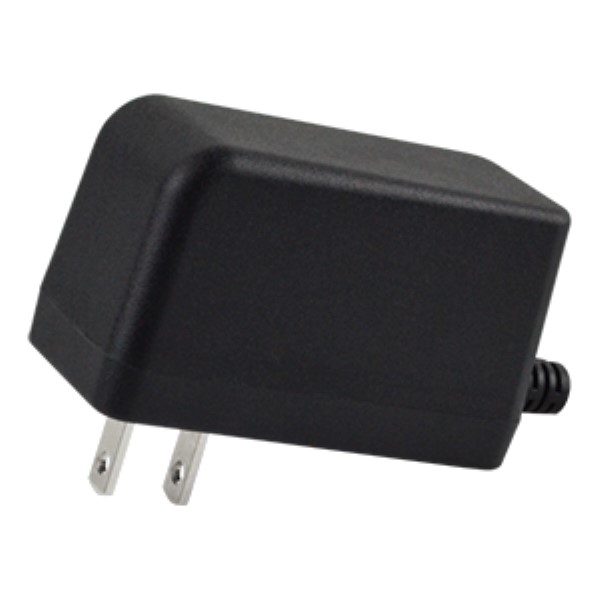

RECOMMENDED REPLACEMENT
SWI12-5-N-P5R
SWI12-5-N-P5R
