EPSA050250U-P5P-EJ by cui inc.
Image is representational - see mfr. specs

EPSA050250U-P5P-EJ

CUI Inc.

AC/DC Adapter - Wall Mount - 12 Watts: 5V @ 2.5A - NA Blades - Lvl V

RoHS Compliant
Packaging
Accessories
Discontinued & Replaced
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
CUI Inc.
Part No:
EPSA050250U-P5P-EJ
RoHS:
Yes
HTS:
8504409510
COO:
CN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Input Connector Type:
NA Blades (U.S. and Others)
Family:
EPSA-12W
Number of Outputs:
1
Maximum AC Input Voltage:
264
Grade:
Commercial
Maximum Input Voltage:
264Vac
Power Rating:
12.5 W
Maximum Output Current:
2.5 A
Mounting:
External
Minimum DC Input Voltage:
Not App
Load Regulation:
5.00 %
Minimum AC Input Voltage:
90
AC Input Current - Maximum:
0.4A
Minimum Isolation Voltage:
3000Vac
Safety Approvals:
cUL, UL
Input/Output Type:
AC/DC
AC Input Current - Typical:
Not Spec'd
Power:
12.5 W
MOPP:
Not App
Output Connector Angle:
Straight
PFC:
No
CoC Tier:
No
DC Input Voltage:
Not App
Dimensions LxWxH:
2.96 x 1.38 x 1.85 in
Short Circuit Protection:
Yes
Safety Class:
None
Maximum Input Current:
Not Spec'd
Efficiency:
Not Spec'd
Type:
Regulated-Switching
Style:
WallMount
Minimum Load (Amps):
0
Overload Protection:
Yes
Ripple & Noise:
50 mV
Output Connector Type:
Barrel - Female
Output Type:
Fixed
Output Connector Diameters:
2.1 x 5.5 mm
Mounting Style:
External
Typical Hold-Up Time:
10ms(Min)
Dimensions L x W x H:
75.0 x 35.0 x 47.0 mm
Input Voltage:
90 to 264 VAC
Minimum Input Voltage:
90Vac
Maximum Output Power:
12.5 W
Package Type:
Wall Plug
Output Connector Polarity:
Center Positive
Output Cord Length:
1.5m (59.1in)
Input Frequency:
47 to 63 Hz
Adapter Color:
Black
Dimension:
75 x 35 x 47 mm
Operating Temperature:
0 to 40 °C
Thermal Protection:
No
AC Input Voltage:
90 to 264
Output Current:
2.5 A
Dimensions L x W x H(in):
2.96 x 1.38 x 1.85 in
Output Voltage:
5 VDC
DOE Efficiency Level:
V
Typical Inrush Current:
30A(Max)
Maximum DC Input Voltage:
Not App
Line Regulation:
5.00 %
Power Indicator:
No
Over Voltage Protection:
Yes
Life Cycle:
Discontinued & Replaced
AC/DC Adapter - Wall Mount - 12 Watts: 5V @ 2.5A - NA Blades - Lvl V
Search Keywords:
EPSA050250UP5PEJ
  This product is not in stock and cannot be back-ordered
Please Note: Tariffs may apply for U.S. shipments

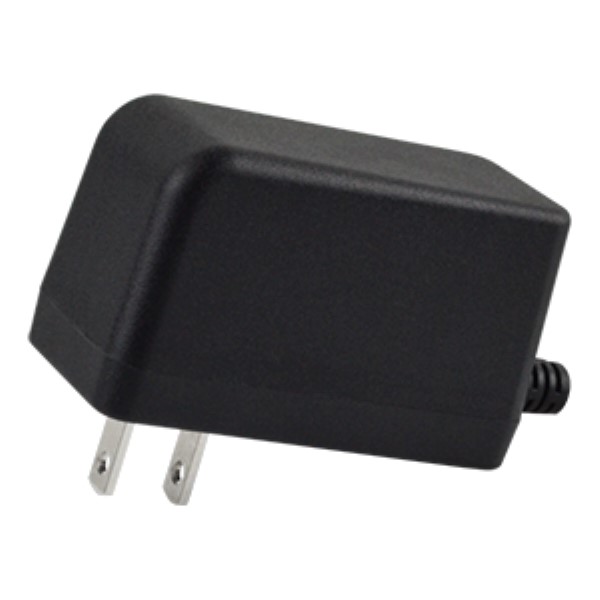

RECOMMENDED REPLACEMENT
SWI12-5-N-P5
SWI12-5-N-P5
VIEW PRODUCT
