EPS120050-P5RP by cui inc.
Image is representational - see mfr. specs

EPS120050-P5RP

CUI Inc.

AC/DC Adapter - Wall Mount - 6 Watts: 12V @ 0.5A - NA Blades - Lvl V

RoHS Compliant
Packaging
Accessories
Discontinued & Replaced
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
CUI Inc.
Part No:
EPS120050-P5RP
RoHS:
Yes
HTS:
8504409510
COO:
CN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Output Cord Length:
1.83m (72.1in)
Maximum Output Power:
6 W
Output Connector Polarity:
Center Positive
Thermal Protection:
No
Dimension:
62.33 x 26.8 x 42 mm
Minimum Load (Amps):
0
Power Indicator:
No
Power Rating:
6 W
AC Input Current - Typical:
Not Spec'd
Package Type:
Wall Plug
Ripple & Noise:
120 mV
Line Regulation:
1.00 %
Output Type:
Fixed
Mounting Style:
External
Dimensions LxWxH:
2.46 x 1.06 x1.66 in
Output Current:
0.5 A
Grade:
Commercial
Output Connector Type:
Barrel - Female
Maximum Input Current:
Not Spec'd
Typical Hold-Up Time:
10 ms
Input Connector Type:
NA Blades (U.S. and Others)
Type:
Regulated-Switching
Minimum AC Input Voltage:
100
Maximum DC Input Voltage:
Not App
Power:
6 W
Safety Class:
None
AC Input Voltage:
100 to 130
Input Voltage:
100 to 130Vac
Overload Protection:
No
Output Connector Diameters:
2.1 x 5.5 mm
Minimum Isolation Voltage:
4242Vdc/3000Vac
DC Input Voltage:
Not App
DOE Efficiency Level:
V
Number of Outputs:
1
Maximum Input Voltage:
130Vac
Efficiency:
Not Spec'd
Family:
EPS-6W
MOPP:
Not App
PFC:
No
Short Circuit Protection:
Yes
Typical Inrush Current:
40A(Max) at 132Vac
Input Frequency:
47 to 63 Hz
Maximum AC Input Voltage:
130
AC Input Current - Maximum:
.015A
Mounting:
External
Load Regulation:
5.00 %
Maximum Output Current:
0.5 A
Output Connector Angle:
Right Angle
Operating Temperature:
0 to 40 °C
Safety Approvals:
cUL, UL
Dimensions L x W x H(in):
2.46 x 1.06 x 1.66 in
Over Voltage Protection:
Yes
Minimum DC Input Voltage:
Not App
Minimum Input Voltage:
110 Vac
Input/Output Type:
AC/DC
Adapter Color:
Black
CoC Tier:
No
Style:
WallMount
Dimensions L x W x H:
62.4 x 26.8 x 42.0 mm
Output Voltage:
12 VDC
Life Cycle:
Discontinued & Replaced
AC/DC Adapter - Wall Mount - 6 Watts: 12V @ 0.5A - NA Blades - Lvl V
Search Keywords:
EPS120050P5RP
  This product is not in stock and cannot be back-ordered
Please Note: Tariffs may apply for U.S. shipments

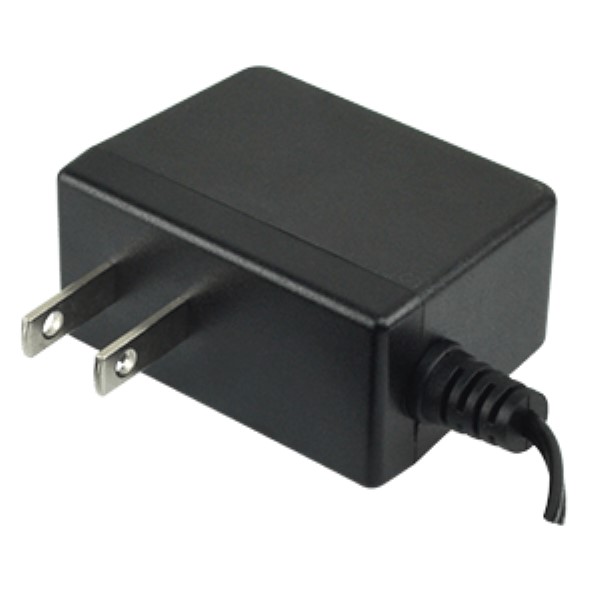

RECOMMENDED REPLACEMENT
SWI6-12-N-P5R
SWI6-12-N-P5R
