EPS060100-P5P by cui inc.
Image is representational - see mfr. specs

EPS060100-P5P

CUI Inc.

AC/DC Adapter - Wall Mount - 6 Watts: 6V @ 1A - NA Blades - Lvl V

RoHS Compliant
Packaging
Accessories
Discontinued & Replaced
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
CUI Inc.
Part No:
EPS060100-P5P
RoHS:
Yes
HTS:
8504409510
COO:
CN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Maximum Input Voltage:
130Vac
Input/Output Type:
AC/DC
Mounting:
External
Load Regulation:
5.00 %
AC Input Current - Maximum:
.015A
Type:
Regulated-Switching
Power:
6 W
Minimum AC Input Voltage:
100
DOE Efficiency Level:
V
Output Cord Length:
1.83m (72.1in)
Typical Hold-Up Time:
10 ms
Ripple & Noise:
100 mV
MOPP:
Not App
Power Rating:
6 W
DC Input Voltage:
Not App
PFC:
No
Maximum Output Power:
6 W
Efficiency:
Not Spec'd
Style:
WallMount
Package Type:
Wall Plug
Maximum AC Input Voltage:
130
Output Connector Angle:
Straight
Grade:
Commercial
Dimensions LxWxH:
2.46 x 1.06 x1.66 in
Minimum Load (Amps):
0
Operating Temperature:
0 to 40 °C
Input Connector Type:
NA Blades (U.S. and Others)
Output Connector Polarity:
Center Positive
AC Input Current - Typical:
Not Spec'd
Overload Protection:
No
Maximum Output Current:
1.0 A
Dimension:
62.33 x 26.8 x 42 mm
Mounting Style:
External
Output Connector Diameters:
2.1 x 5.5 mm
Input Frequency:
47 to 63 Hz
Over Voltage Protection:
Yes
Safety Approvals:
cUL, UL
Number of Outputs:
1
Minimum DC Input Voltage:
Not App
Output Voltage:
6 VDC
Dimensions L x W x H(in):
2.46 x 1.06 x 1.66 in
Typical Inrush Current:
40A(Max) at 132Vac
Power Indicator:
No
Output Type:
Fixed
Adapter Color:
Black
Maximum Input Current:
Not Spec'd
Maximum DC Input Voltage:
Not App
Minimum Input Voltage:
110 Vac
Family:
EPS-6W
Short Circuit Protection:
Yes
AC Input Voltage:
100 to 130
Dimensions L x W x H:
62.4 x 26.8 x 42.0 mm
Safety Class:
None
Output Current:
1.0 A
Output Connector Type:
Barrel - Female
Thermal Protection:
No
Minimum Isolation Voltage:
4242Vdc/3000Vac
CoC Tier:
No
Line Regulation:
1.00 %
Input Voltage:
100 to 130Vac
Life Cycle:
Discontinued & Replaced
AC/DC Adapter - Wall Mount - 6 Watts: 6V @ 1A - NA Blades - Lvl V
Search Keywords:
EPS060100P5P
  This product is not in stock and cannot be back-ordered
Please Note: Tariffs may apply for U.S. shipments

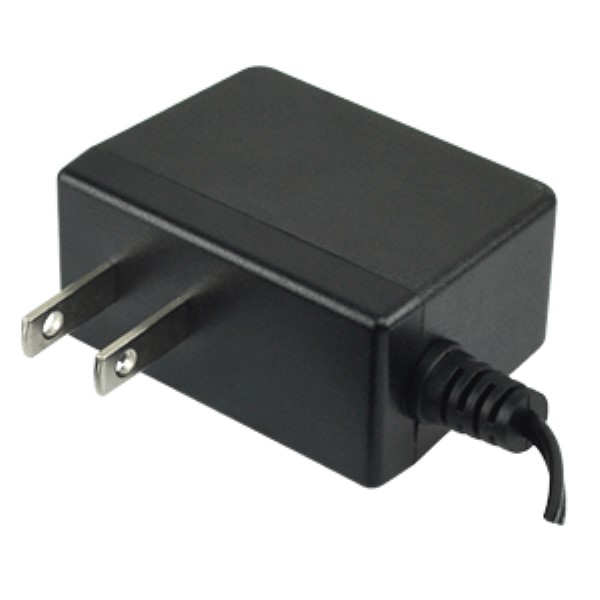

RECOMMENDED REPLACEMENT
SWI6-5.9-N-P5
SWI6-5.9-N-P5
VIEW PRODUCT
