Image is representational - see mfr. specs
Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
CUI Inc.
Part No:
EPS060100-P5N
RoHS:
Yes
HTS:
8504409510
COO:
CN
ECCN:
EAR99
Supplier Standard Pack
1
Dimension:
62.33 x 26.8 x 42 mm
Minimum Load (Amps):
0
Dimensions L x W x H:
62.4 x 26.8 x 42.0 mm
Output Type:
Fixed
Output Current:
1.0 A
Power Indicator:
No
Minimum AC Input Voltage:
100
Line Regulation:
1.00 %
Maximum DC Input Voltage:
Not App
PFC:
No
Output Cord Length:
1.83m (72.1in)
Output Connector Angle:
Straight
Minimum Input Voltage:
110 Vac
Adapter Color:
Black
Maximum Input Current:
Not Spec'd
Mounting:
External
Over Voltage Protection:
Yes
Minimum Isolation Voltage:
4242Vdc/3000Vac
Output Connector Type:
Barrel - Female
Short Circuit Protection:
Yes
MOPP:
Not App
Input Frequency:
47 to 63 Hz
Style:
WallMount
Thermal Protection:
No
Output Connector Polarity:
Center Negative
Dimensions L x W x H(in):
2.46 x 1.06 x 1.66 in
Grade:
Commercial
Typical Inrush Current:
40A(Max) at 132Vac
Maximum Output Power:
6 W
Family:
EPS-6W
Safety Approvals:
cUL, UL
DOE Efficiency Level:
V
Operating Temperature:
0 to 40 °C
CoC Tier:
No
Mounting Style:
External
Maximum Input Voltage:
130Vac
AC Input Current - Typical:
Not Spec'd
Output Connector Diameters:
2.1 x 5.5 mm
Dimensions LxWxH:
2.46 x 1.06 x1.66 in
Minimum DC Input Voltage:
Not App
Maximum Output Current:
1.0 A
Input Voltage:
100 to 130Vac
Safety Class:
None
Type:
Regulated-Switching
Power Rating:
6 W
Typical Hold-Up Time:
10 ms
Power:
6 W
Number of Outputs:
1
Efficiency:
Not Spec'd
Load Regulation:
5.00 %
Overload Protection:
No
Input/Output Type:
AC/DC
DC Input Voltage:
Not App
Maximum AC Input Voltage:
130
AC Input Voltage:
100 to 130
Package Type:
Wall Plug
Ripple & Noise:
100 mV
Output Voltage:
6 VDC
Input Connector Type:
NA Blades (U.S. and Others)
AC Input Current - Maximum:
.015A
Life Cycle:
Discontinued & Replaced

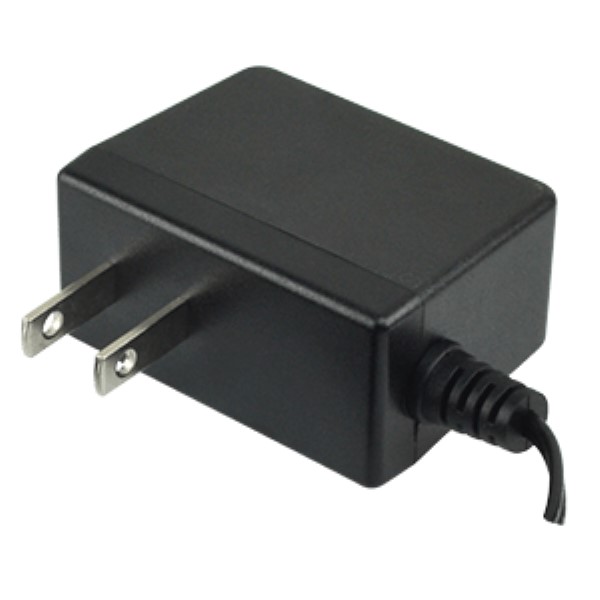

AC/DC Adapter - Wall Mount - 6 Watts: 6V @ 1A - NA Blades - Lvl V
Search Keywords:
EPS060100P5N
This product is not in stock and cannot be back-ordered
