EMSA240075-P5RP-SZ by cui inc.
Image is representational - see mfr. specs

EMSA240075-P5RP-SZ

CUI Inc.

AC/DC Adapter - Wall Mount - 18 Watts: 24V @ 0.75A - AU_CN_EU_NA_UK Input Blade Kit - Lvl V

RoHS Compliant
Packaging
Accessories
Discontinued & Replaced
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
CUI Inc.
Part No:
EMSA240075-P5RP-SZ
RoHS:
Yes
HTS:
8504409510
COO:
CN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Maximum Input Voltage:
264Vac
Minimum Isolation Voltage:
4242Vdc/3000Vac
Input/Output Type:
AC/DC
Safety Approvals:
CCC, CE, cUL, GS, PSE, RCM, TUV, UL
Output Connector Angle:
Right Angle
PFC:
No
Dimensions L x W x H:
74.0 x 43.5 x 35.3 mm
Style:
Interchangeable WallMount
Minimum DC Input Voltage:
Not App
Dimensions LxWxH:
2.92 x 1.72 x 1.39In
Short Circuit Protection:
Yes
Grade:
Commercial
Family:
EMSA-18W
Output Connector Polarity:
Center Positive
Input Frequency:
47 to 63 Hz
Safety Class:
None
Dimensions L x W x H(in):
2.92 x 1.72 x 1.39 in
Maximum Output Current:
0.75 A
Power Rating:
18 W
Adapter Color:
Black
AC Input Current - Typical:
Not Spec'd
Typical Inrush Current:
40/80A(Max) at 115/230Vac
Output Connector Type:
Barrel - Female
CoC Tier:
No
DOE Efficiency Level:
V
Output Type:
Fixed
Power Indicator:
No
Maximum DC Input Voltage:
Not App
Dimension:
74 x 43.5 x 35.3 mm
Output Cord Length:
1.53m (60.3in)
Maximum Output Power:
18 W
Operating Temperature:
0 to 40 °C
Power:
18 W
Thermal Protection:
No
Ripple & Noise:
240 mV
Typical Hold-Up Time:
Not Spec'd
Maximum AC Input Voltage:
264
Input Voltage:
90 to 264Vac
Type:
Regulated-Switching
Minimum Load (Amps):
0
Over Voltage Protection:
Yes
Number of Outputs:
1
Load Regulation:
5.00 %
Line Regulation:
1.00 %
DC Input Voltage:
Not App
Efficiency:
Not Spec'd
Output Current:
0.7 A
Mounting:
External
Minimum Input Voltage:
90Vac
AC Input Current - Maximum:
0.6A
Mounting Style:
External
Output Connector Diameters:
2.1 x 5.5 mm
Package Type:
Wall Plug
Minimum AC Input Voltage:
90
Output Voltage:
24 VDC
Overload Protection:
No
AC Input Voltage:
90 to 264
Input Connector Type:
Interchangeable-Kit
MOPP:
Not App
Maximum Input Current:
Not Spec'd
Life Cycle:
Discontinued & Replaced
AC/DC Adapter - Wall Mount - 18 Watts: 24V @ 0.75A - AU_CN_EU_NA_UK Input Blade Kit - Lvl V
Search Keywords:
EMSA240075P5RPSZ
  This product is not in stock and cannot be back-ordered
Please Note: Tariffs may apply for U.S. shipments

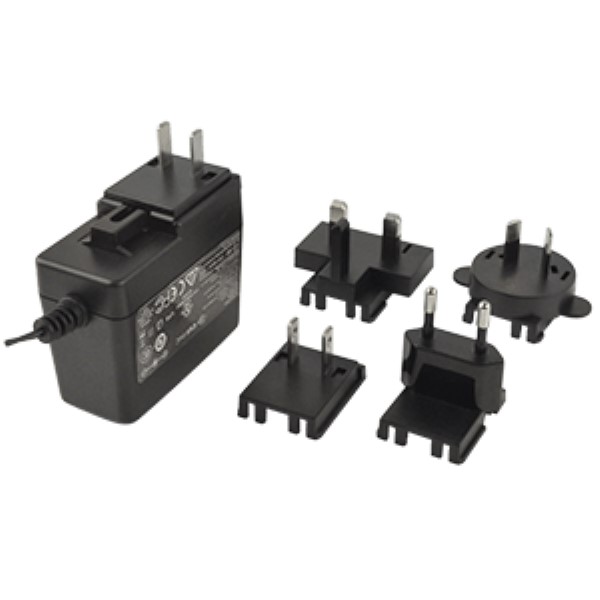

RECOMMENDED REPLACEMENT
SMI18-24-V-P5R
SMI18-24-V-P5R
