EMSA240075-P5P-SZ by cui inc.
Image is representational - see mfr. specs

EMSA240075-P5P-SZ

CUI Inc.

AC/DC Adapter - Wall Mount - 18 Watts: 24V @ 0.75A - AU_CN_EU_NA_UK Input Blade Kit - Lvl V

RoHS Compliant
Packaging
Accessories
Discontinued & Replaced
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
CUI Inc.
Part No:
EMSA240075-P5P-SZ
RoHS:
Yes
HTS:
8504409510
COO:
CN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Input Voltage:
90 to 264Vac
Safety Class:
None
Typical Inrush Current:
40/80A(Max) at 115/230Vac
Family:
EMSA-18W
Minimum Load (Amps):
0
AC Input Current - Maximum:
0.6A
Output Connector Diameters:
2.1 x 5.5 mm
Minimum Input Voltage:
90Vac
Maximum DC Input Voltage:
Not App
Over Voltage Protection:
Yes
Minimum AC Input Voltage:
90
Output Connector Polarity:
Center Positive
Output Type:
Fixed
Ripple & Noise:
240 mV
Output Connector Type:
Barrel - Female
Maximum AC Input Voltage:
264
Thermal Protection:
No
Typical Hold-Up Time:
Not Spec'd
Package Type:
Wall Plug
DC Input Voltage:
Not App
Efficiency:
Not Spec'd
Output Voltage:
24 VDC
Input Connector Type:
Interchangeable-Kit
Overload Protection:
No
Output Connector Angle:
Straight
Mounting Style:
External
Load Regulation:
5.00 %
AC Input Current - Typical:
Not Spec'd
Power Indicator:
No
AC Input Voltage:
90 to 264
Line Regulation:
1.00 %
Power Rating:
18 W
Maximum Input Current:
Not Spec'd
Dimension:
74 x 43.5 x 35.3 mm
Mounting:
External
MOPP:
Not App
Maximum Input Voltage:
264Vac
DOE Efficiency Level:
V
Short Circuit Protection:
Yes
Maximum Output Power:
18 W
Output Current:
0.7 A
Input/Output Type:
AC/DC
Adapter Color:
Black
Type:
Regulated-Switching
Minimum DC Input Voltage:
Not App
Input Frequency:
47 to 63 Hz
CoC Tier:
No
Grade:
Commercial
Operating Temperature:
0 to 40 °C
Power:
18 W
Dimensions L x W x H:
74.0 x 43.5 x 35.3 mm
PFC:
No
Maximum Output Current:
0.75 A
Dimensions LxWxH:
2.92 x 1.72 x 1.39In
Dimensions L x W x H(in):
2.92 x 1.72 x 1.39 in
Style:
Interchangeable WallMount
Minimum Isolation Voltage:
4242Vdc/3000Vac
Safety Approvals:
CCC, CE, cUL, GS, PSE, RCM, TUV, UL
Output Cord Length:
1.53m (60.3in)
Number of Outputs:
1
Life Cycle:
Discontinued & Replaced
AC/DC Adapter - Wall Mount - 18 Watts: 24V @ 0.75A - AU_CN_EU_NA_UK Input Blade Kit - Lvl V
Search Keywords:
EMSA240075P5PSZ
  This product is not in stock and cannot be back-ordered
Please Note: Tariffs may apply for U.S. shipments

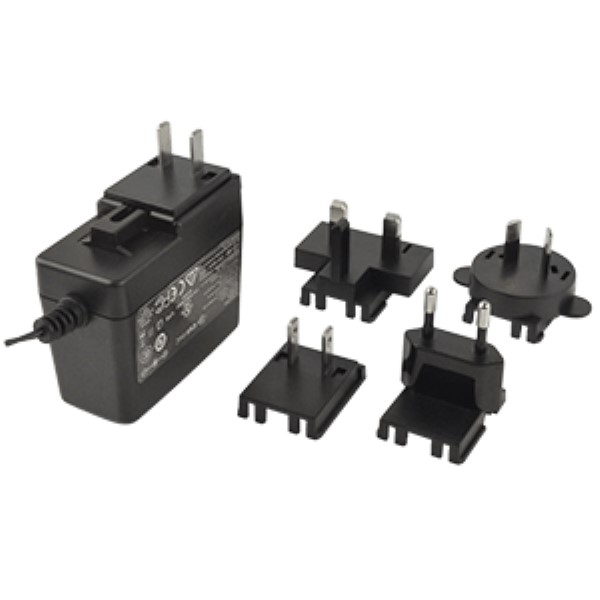

RECOMMENDED REPLACEMENT
SMI18-24-V-P5
SMI18-24-V-P5
