EMSA240075K-P5P-SZ by cui inc.
Image is representational - see mfr. specs

EMSA240075K-P5P-SZ

CUI Inc.

AC/DC Adapter - Wall Mount - 18 Watts: 24V @ 0.75A ++ NO AC INPUT BLADES ++ Lvl V

RoHS Compliant
Packaging
Accessories
Discontinued & Replaced
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
CUI Inc.
Part No:
EMSA240075K-P5P-SZ
RoHS:
Yes
HTS:
8504409510
COO:
CN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
CoC Tier:
No
Overload Protection:
No
Efficiency:
Not Spec'd
Dimensions L x W x H(in):
2.92 x 1.72 x 1.39 in
Load Regulation:
5.00 %
Input Connector Type:
Interchangeable-Order Separately
Maximum Output Power:
18 W
Maximum DC Input Voltage:
Not App
Mounting:
External
Power Rating:
18 W
Minimum DC Input Voltage:
Not App
Style:
Interchangeable WallMount
Safety Approvals:
CCC, CE, cUL, GS, PSE, RCM, TUV, UL
Minimum Isolation Voltage:
4242Vdc/3000Vac
AC Input Current - Maximum:
0.6A
DC Input Voltage:
Not App
Maximum Output Current:
0.75 A
AC Input Voltage:
90 to 264
Dimensions LxWxH:
2.92 x 1.72 x 1.39 in
Power Indicator:
No
Output Connector Type:
Barrel - Female
Input/Output Type:
AC/DC
Number of Outputs:
1
MOPP:
Not App
Output Connector Diameters:
2.1 x 5.5 mm
Output Current:
0.7 A
Output Voltage:
24 VDC
Maximum Input Voltage:
264Vac
Dimension:
74 x 43.5 x 35.3 mm
Minimum AC Input Voltage:
90
Grade:
Commercial
Input Voltage:
90 to 264Vac
Output Cord Length:
1.53m (60.3in)
Minimum Input Voltage:
90Vac
Line Regulation:
1.00 %
PFC:
No
Output Type:
Fixed
AC Input Current - Typical:
Not Spec'd
Power:
18 W
Safety Class:
None
Over Voltage Protection:
Yes
DOE Efficiency Level:
V
Minimum Load (Amps):
0
Thermal Protection:
No
Type:
Regulated-Switching
Adapter Color:
Black
Operating Temperature:
0 to 40 °C
Short Circuit Protection:
Yes
Typical Hold-Up Time:
Not Spec'd
Maximum Input Current:
Not Spec'd
Output Connector Polarity:
Center Positive
Typical Inrush Current:
40/80A(Max) at 115/230Vac
Output Connector Angle:
Straight
Ripple & Noise:
240 mV
Package Type:
Wall Plug
Mounting Style:
External
Maximum AC Input Voltage:
264
Dimensions L x W x H:
74.0 x 43.5 x 35.3 mm
Input Frequency:
47 to 63 Hz
Family:
EMSA-18W
Life Cycle:
Discontinued & Replaced
AC/DC Adapter - Wall Mount - 18 Watts: 24V @ 0.75A ++ NO AC INPUT BLADES ++ Lvl V
Search Keywords:
EMSA240075KP5PSZ
  This product is not in stock and cannot be back-ordered
Please Note: Tariffs may apply for U.S. shipments

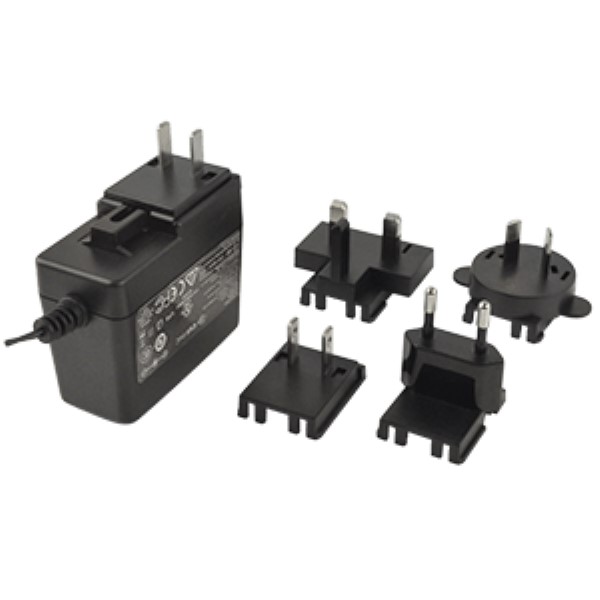

RECOMMENDED REPLACEMENT
SMI18-24-K-P5
SMI18-24-K-P5
VIEW PRODUCT
