EMSA180100-P5P-SZ by cui inc.
Image is representational - see mfr. specs

EMSA180100-P5P-SZ

CUI Inc.

AC/DC Adapter - Wall Mount - 18 Watts: 18V @ 1A - AU_CN_EU_NA_UK Input Blade Kit - Lvl V

RoHS Compliant
Packaging
Accessories
Discontinued & Replaced
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
CUI Inc.
Part No:
EMSA180100-P5P-SZ
RoHS:
Yes
HTS:
8504409510
COO:
CN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Input/Output Type:
AC/DC
Overload Protection:
No
Style:
Interchangeable WallMount
Number of Outputs:
1
Grade:
Commercial
Maximum Output Current:
1.0 A
AC Input Voltage:
90 to 264
Dimensions LxWxH:
2.92 x 1.72 x 1.39In
Input Voltage:
90 to 264Vac
Type:
Regulated-Switching
Dimensions L x W x H:
74.0 x 43.5 x 35.3 mm
Input Connector Type:
Interchangeable-Kit
Power Rating:
18 W
Line Regulation:
1.00 %
Dimensions L x W x H(in):
2.92 x 1.72 x 1.39 in
Maximum Input Voltage:
264Vac
DC Input Voltage:
Not App
Minimum DC Input Voltage:
Not App
Input Frequency:
47 to 63 Hz
Power:
18 W
Output Connector Diameters:
2.1 x 5.5 mm
Load Regulation:
5.00 %
Safety Approvals:
CCC, CE, cUL, GS, PSE, RCM, TUV, UL
Output Voltage:
18 VDC
Power Indicator:
No
Over Voltage Protection:
Yes
DOE Efficiency Level:
V
MOPP:
Not App
Family:
EMSA-18W
Output Type:
Fixed
Typical Hold-Up Time:
Not Spec'd
Operating Temperature:
0 to 40 °C
Typical Inrush Current:
40/80A(Max) at 115/230Vac
Output Connector Angle:
Straight
Dimension:
74 x 43.5 x 35.3 mm
AC Input Current - Typical:
Not Spec'd
Maximum Output Power:
18 W
Maximum AC Input Voltage:
264
Mounting:
External
Thermal Protection:
No
Ripple & Noise:
180 mV
Output Current:
1.0 A
Minimum Input Voltage:
90Vac
CoC Tier:
No
Output Connector Polarity:
Center Positive
Output Cord Length:
1.53m (60.3in)
Adapter Color:
Black
Efficiency:
Not Spec'd
Minimum Load (Amps):
0
PFC:
No
Mounting Style:
External
Safety Class:
None
Package Type:
Wall Plug
Minimum AC Input Voltage:
90
AC Input Current - Maximum:
0.6A
Maximum DC Input Voltage:
Not App
Output Connector Type:
Barrel - Female
Short Circuit Protection:
Yes
Minimum Isolation Voltage:
4242Vdc/3000Vac
Maximum Input Current:
Not Spec'd
Life Cycle:
Discontinued & Replaced
AC/DC Adapter - Wall Mount - 18 Watts: 18V @ 1A - AU_CN_EU_NA_UK Input Blade Kit - Lvl V
Search Keywords:
EMSA180100P5PSZ
  This product is not in stock and cannot be back-ordered
Please Note: Tariffs may apply for U.S. shipments

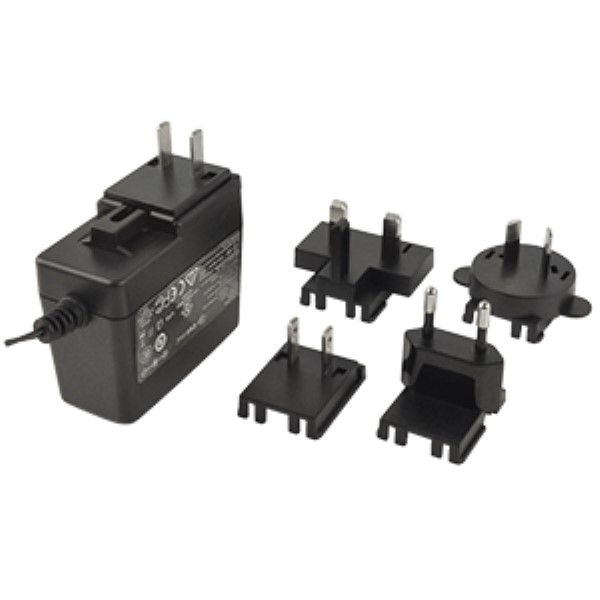

RECOMMENDED REPLACEMENT
SMI18-18-V-P5
SMI18-18-V-P5
VIEW PRODUCT
