EMSA150120K-P5P-SZ by cui inc.
Image is representational - see mfr. specs

EMSA150120K-P5P-SZ

CUI Inc.

AC/DC Adapter - Wall Mount - 18 Watts: 15V @ 1.2A ++ NO AC INPUT BLADES ++ Lvl V

RoHS Compliant
Packaging
Accessories
Discontinued & Replaced
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
CUI Inc.
Part No:
EMSA150120K-P5P-SZ
RoHS:
Yes
HTS:
8504409510
COO:
CN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
AC Input Voltage:
90 to 264
Type:
Regulated-Switching
Dimension:
74 x 43.5 x 35.3 mm
Operating Temperature:
0 to 40 °C
Dimensions LxWxH:
2.92 x 1.72 x 1.39 in
Thermal Protection:
No
Maximum Input Current:
Not Spec'd
Safety Class:
None
Input Frequency:
47 to 63 Hz
PFC:
No
Input Voltage:
90 to 264Vac
Ripple & Noise:
150 mV
Family:
EMSA-18W
Minimum Input Voltage:
90Vac
Line Regulation:
1.00 %
Adapter Color:
Black
Power Indicator:
No
Output Current:
1.2 A
Load Regulation:
5.00 %
Output Cord Length:
1.53m (60.3in)
Power:
18 W
Output Type:
Fixed
Minimum DC Input Voltage:
Not App
AC Input Current - Typical:
Not Spec'd
Output Connector Diameters:
2.1 x 5.5 mm
Safety Approvals:
CCC, CE, cUL, GS, PSE, RCM, TUV, UL
Minimum Isolation Voltage:
4242Vdc/3000Vac
Input Connector Type:
Interchangeable-Order Separately
Style:
Interchangeable WallMount
Minimum AC Input Voltage:
90
Package Type:
Wall Plug
AC Input Current - Maximum:
0.6A
Output Connector Type:
Barrel - Female
CoC Tier:
No
Maximum Input Voltage:
264Vac
Dimensions L x W x H(in):
2.92 x 1.72 x 1.39 in
Maximum DC Input Voltage:
Not App
Output Connector Polarity:
Center Positive
Output Connector Angle:
Straight
Efficiency:
Not Spec'd
Short Circuit Protection:
Yes
Minimum Load (Amps):
0
Typical Hold-Up Time:
Not Spec'd
Mounting Style:
External
Dimensions L x W x H:
74.0 x 43.5 x 35.3 mm
Overload Protection:
No
Input/Output Type:
AC/DC
DOE Efficiency Level:
V
DC Input Voltage:
Not App
Grade:
Commercial
MOPP:
Not App
Number of Outputs:
1
Maximum AC Input Voltage:
264
Maximum Output Power:
18 W
Power Rating:
18 W
Maximum Output Current:
1.2 A
Typical Inrush Current:
40/80A(Max) at 115/230Vac
Over Voltage Protection:
Yes
Mounting:
External
Output Voltage:
15 VDC
Life Cycle:
Discontinued & Replaced
AC/DC Adapter - Wall Mount - 18 Watts: 15V @ 1.2A ++ NO AC INPUT BLADES ++ Lvl V
Search Keywords:
EMSA150120KP5PSZ
  This product is not in stock and cannot be back-ordered
Please Note: Tariffs may apply for U.S. shipments

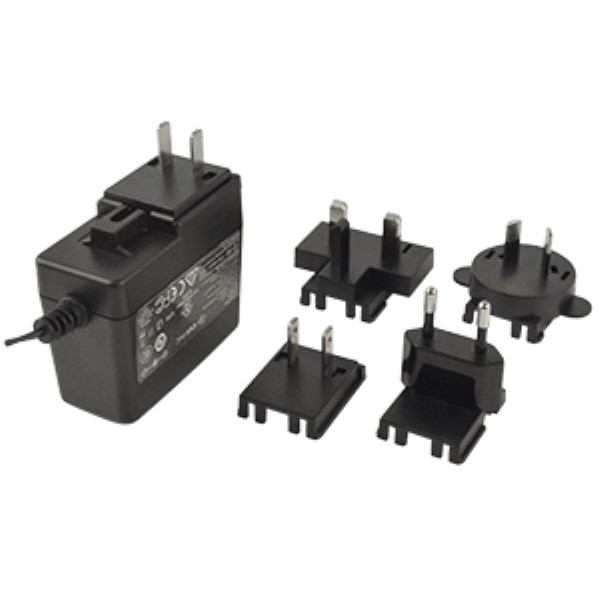

RECOMMENDED REPLACEMENT
SMI18-15-K-P5
SMI18-15-K-P5
