EMSA120300K-P5P-SZ by cui inc.
Image is representational - see mfr. specs

EMSA120300K-P5P-SZ

CUI Inc.

AC/DC Adapter - Wall Mount - 40 Watts: 12V @ 3A ++ NO AC INPUT BLADES ++ Lvl V

RoHS Compliant
Packaging
Accessories
Discontinued & Replaced
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
CUI Inc.
Part No:
EMSA120300K-P5P-SZ
RoHS:
Yes
HTS:
8504409510
COO:
CN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Input Voltage:
90 to 264Vac
Output Connector Diameters:
2.1 x 5.5 mm
Operating Temperature:
0 to 40 °C
Over Voltage Protection:
Yes
Family:
EMSA-40W
Line Regulation:
1.00 %
Power Rating:
36 W
Minimum Load (Amps):
0
Thermal Protection:
No
Type:
Regulated-Switching
Output Current:
3.0 A
Output Connector Polarity:
Center Positive
Dimensions LxWxH:
2.92x 1.72 x 1.39 in
Output Type:
Fixed
Input Connector Type:
Interchangeable-Order Separately
Minimum AC Input Voltage:
90
Power Indicator:
No
Minimum Input Voltage:
90Vac
Maximum Output Power:
36 W
Dimensions L x W x H(in):
2.92 x 1.72 x 1.39 in
Adapter Color:
Black
Input/Output Type:
AC/DC
Minimum DC Input Voltage:
Not App
Typical Inrush Current:
Not Spec'd
Dimensions L x W x H:
74.0 x 43.5 x 35.3 mm
Output Connector Type:
Barrel - Female
Mounting:
External
Safety Approvals:
CCC, CE, cUL, GS, PSE, RCM, TUV, UL
AC Input Voltage:
90 to 264
Typical Hold-Up Time:
Not Spec'd
Safety Class:
None
Package Type:
Wall Plug
CoC Tier:
No
Mounting Style:
External
MOPP:
Not App
Maximum DC Input Voltage:
Not App
Maximum Output Current:
3.0 A
Grade:
Commercial
Input Frequency:
47 to 63 Hz
Load Regulation:
5.00 %
Minimum Isolation Voltage:
4242Vdc/3000Vac
Short Circuit Protection:
Yes
Output Connector Angle:
Straight
Overload Protection:
No
Output Voltage:
12 VDC
Dimension:
74 x 43.5 x 35.3 mm
DC Input Voltage:
Not App
Maximum AC Input Voltage:
264
Ripple & Noise:
300 mV
Number of Outputs:
1
Efficiency:
Not Spec'd
DOE Efficiency Level:
V
Output Cord Length:
1.53m (60.3in)
PFC:
No
AC Input Current - Typical:
Not Spec'd
Maximum Input Voltage:
264Vac
AC Input Current - Maximum:
1.0A
Maximum Input Current:
Not Spec'd
Power:
36 W
Style:
Interchangeable WallMount
Life Cycle:
Discontinued & Replaced
AC/DC Adapter - Wall Mount - 40 Watts: 12V @ 3A ++ NO AC INPUT BLADES ++ Lvl V
Search Keywords:
EMSA120300KP5PSZ
  This product is not in stock and cannot be back-ordered
Please Note: Tariffs may apply for U.S. shipments

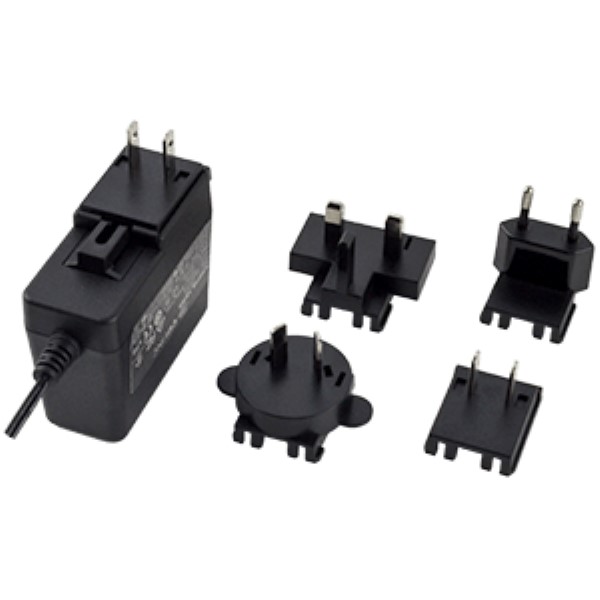

RECOMMENDED REPLACEMENT
SMI36-12-K-P5
SMI36-12-K-P5
