EMSA120250-P5RP-SZ by cui inc.
Image is representational - see mfr. specs

EMSA120250-P5RP-SZ

CUI Inc.

AC/DC Adapter - Wall Mount - 30 Watts: 12V @ 2.5A - AU_CN_EU_NA_UK Input Blade Kit - Lvl V

RoHS Compliant
Packaging
Accessories
Discontinued & Replaced
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
CUI Inc.
Part No:
EMSA120250-P5RP-SZ
RoHS:
Yes
HTS:
8504409510
COO:
CN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Ripple & Noise:
300 mV
Safety Approvals:
CCC, CE, cUL, GS, PSE, RCM, TUV, UL
Power Rating:
30 W
MOPP:
Not App
Dimension:
74 x 43.5 x 35.3 mm
AC Input Current - Typical:
Not Spec'd
Output Connector Angle:
Right Angle
Dimensions LxWxH:
2.92 x 1.72 x 1.39 in
DC Input Voltage:
Not App
Minimum DC Input Voltage:
Not App
Type:
Regulated-Switching
Package Type:
Wall Plug
Family:
EMSA-30W
Minimum AC Input Voltage:
90
Efficiency:
Not Spec'd
Mounting:
External
Input Voltage:
90 to 264Vac
Dimensions L x W x H:
74.0 x 43.5 x 35.3 mm
Output Connector Diameters:
2.1 x 5.5 mm
Minimum Input Voltage:
90Vac
AC Input Current - Maximum:
1.0A
Mounting Style:
External
Input Frequency:
47 to 63 Hz
Line Regulation:
1.00 %
Over Voltage Protection:
Yes
Power Indicator:
No
Input Connector Type:
Interchangeable-Kit
Output Voltage:
12 VDC
Maximum Input Current:
Not Spec'd
Operating Temperature:
0 to 40 °C
Maximum AC Input Voltage:
264
Maximum Output Current:
2.5 A
AC Input Voltage:
90 to 264
Output Cord Length:
1.53m (60.3in)
Safety Class:
None
Minimum Load (Amps):
0
Adapter Color:
Black
Maximum DC Input Voltage:
Not App
Thermal Protection:
No
Number of Outputs:
1
Maximum Output Power:
30 W
Maximum Input Voltage:
264Vac
Output Connector Polarity:
Center Positive
Short Circuit Protection:
Yes
Output Current:
2.5 A
Overload Protection:
No
Output Type:
Fixed
Power:
30 W
Load Regulation:
5.00 %
Typical Inrush Current:
Not Spec'd
Output Connector Type:
Barrel - Female
Minimum Isolation Voltage:
4242Vdc/3000Vac
DOE Efficiency Level:
V
Special Features:
Low Leakage Current
Dimensions L x W x H(in):
2.92 x 1.72 x 1.39 in
Style:
Interchangeable WallMount
Grade:
Commercial
Typical Hold-Up Time:
10 ms
PFC:
No
CoC Tier:
No
Input/Output Type:
AC/DC
Life Cycle:
Discontinued & Replaced
AC/DC Adapter - Wall Mount - 30 Watts: 12V @ 2.5A - AU_CN_EU_NA_UK Input Blade Kit - Lvl V
Search Keywords:
EMSA120250P5RPSZ
  This product is not in stock and cannot be back-ordered
Please Note: Tariffs may apply for U.S. shipments
RECOMMENDED REPLACEMENT

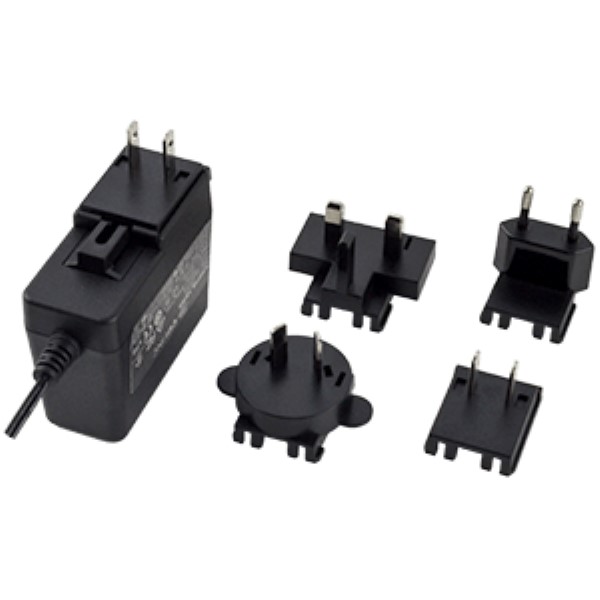

SMI36-12-V-P5R
SMI36-12-V-P5R
