EMSA090200-P5RP-SZ by cui inc.
Image is representational - see mfr. specs

EMSA090200-P5RP-SZ

CUI Inc.

AC/DC Adapter - Wall Mount - 18 Watts: 9V @ 2A - AU_CN_EU_NA_UK Input Blade Kit - Lvl V

RoHS Compliant
Packaging
Accessories
Discontinued & Replaced
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
CUI Inc.
Part No:
EMSA090200-P5RP-SZ
RoHS:
Yes
HTS:
8504409510
COO:
CN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Maximum Input Voltage:
264Vac
Input/Output Type:
AC/DC
Minimum Isolation Voltage:
4242Vdc/3000Vac
Safety Approvals:
CCC, CE, cUL, GS, PSE, RCM, TUV, UL
CoC Tier:
No
Dimensions LxWxH:
2.92 x 1.72 x 1.39In
Style:
Interchangeable WallMount
Dimensions L x W x H(in):
2.92 x 1.72 x 1.39 in
Grade:
Commercial
Line Regulation:
1.00 %
Input Frequency:
47 to 63 Hz
Output Connector Angle:
Right Angle
Thermal Protection:
No
Output Type:
Fixed
Adapter Color:
Black
Output Current:
2.0 A
Operating Temperature:
0 to 40 °C
Ripple & Noise:
150 mV
Family:
EMSA-18W
Dimensions L x W x H:
74.0 x 43.5 x 35.3 mm
DOE Efficiency Level:
V
Mounting:
External
Minimum Input Voltage:
90Vac
AC Input Voltage:
90 to 264
Power Rating:
18 W
Maximum Input Current:
Not Spec'd
Power:
18 W
Maximum Output Power:
18 W
AC Input Current - Maximum:
0.6A
Input Connector Type:
Interchangeable-Kit
Power Indicator:
No
Type:
Regulated-Switching
Typical Inrush Current:
40/80A(Max) at 115/230Vac
MOPP:
Not App
Output Connector Diameters:
2.1 x 5.5 mm
Over Voltage Protection:
Yes
Minimum DC Input Voltage:
Not App
Safety Class:
None
Minimum AC Input Voltage:
90
Overload Protection:
No
Output Voltage:
9 VDC
Minimum Load (Amps):
0
Output Connector Polarity:
Center Positive
Package Type:
Wall Plug
Short Circuit Protection:
Yes
Maximum Output Current:
2.0 A
Input Voltage:
90 to 264Vac
PFC:
No
AC Input Current - Typical:
Not Spec'd
Output Connector Type:
Barrel - Female
Efficiency:
Not Spec'd
Maximum AC Input Voltage:
264
Load Regulation:
5.00 %
Maximum DC Input Voltage:
Not App
Number of Outputs:
1
Typical Hold-Up Time:
Not Spec'd
Mounting Style:
External
DC Input Voltage:
Not App
Dimension:
74 x 43.5 x 35.3 mm
Output Cord Length:
1.53m (60.3in)
Life Cycle:
Discontinued & Replaced
AC/DC Adapter - Wall Mount - 18 Watts: 9V @ 2A - AU_CN_EU_NA_UK Input Blade Kit - Lvl V
Search Keywords:
EMSA090200P5RPSZ
  This product is not in stock and cannot be back-ordered
Please Note: Tariffs may apply for U.S. shipments

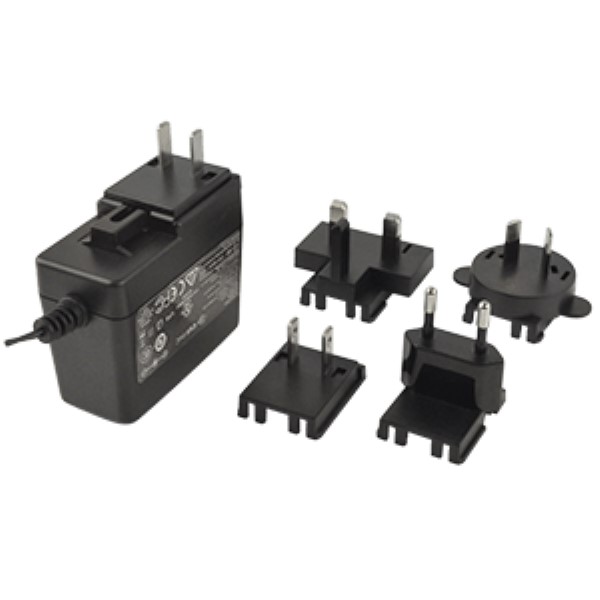

RECOMMENDED REPLACEMENT
SMI18-9-V-P5R
SMI18-9-V-P5R
VIEW PRODUCT
