EMSA090067K-P5P-SZ by cui inc.
Image is representational - see mfr. specs

EMSA090067K-P5P-SZ

CUI Inc.

AC/DC Adapter - Wall Mount - 6 Watts: 9V @ 0.67A ++ NO AC INPUT BLADES ++ Lvl V

RoHS Compliant
Packaging
Accessories
Discontinued & Replaced
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
CUI Inc.
Part No:
EMSA090067K-P5P-SZ
RoHS:
Yes
HTS:
8504409510
COO:
CN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Input Connector Type:
Interchangeable-Order Separately
Maximum Input Voltage:
264Vac
Input/Output Type:
AC/DC
Grade:
Commercial
Minimum Isolation Voltage:
4242Vdc/3000Vac
Power:
6 W
Dimensions L x W x H:
64.0 x 40.5 x 30.0 mm
DC Input Voltage:
Not App
Style:
Interchangeable WallMount
MOPP:
Not App
Output Current:
0.67 A
Minimum Load (Amps):
0
Short Circuit Protection:
Yes
Output Connector Angle:
Straight
Package Type:
Wall Plug
Line Regulation:
3.00 %
Mounting Style:
External
AC Input Current - Typical:
Not Spec'd
Efficiency:
Not Spec'd
Output Cord Length:
1.53m (60.3in)
Power Indicator:
No
Load Regulation:
5.00 %
Input Voltage:
90 to 264Vac
Maximum Output Power:
6 W
Adapter Color:
Black
Type:
Regulated-Switching
Over Voltage Protection:
Yes
PFC:
No
Minimum Input Voltage:
90Vac
Dimensions L x W x H(in):
2.52 x 1.60 x 1.19 in
Power Rating:
6 W
Ripple & Noise:
150 mV
Minimum DC Input Voltage:
Not App
Typical Hold-Up Time:
Not Spec'd
Number of Outputs:
1
Safety Class:
None
Output Connector Diameters:
2.1 x 5.5 mm
Maximum Output Current:
0.67 A
Dimensions LxWxH:
2.52 x 1.6 x 1.19 in
Minimum AC Input Voltage:
90
Mounting:
External
Maximum AC Input Voltage:
264
AC Input Voltage:
90 to 264
Overload Protection:
No
DOE Efficiency Level:
V
Maximum Input Current:
Not Spec'd
Operating Temperature:
0 to 40 °C
Thermal Protection:
No
Output Connector Polarity:
Center Positive
Family:
EMSA-6W
CoC Tier:
No
AC Input Current - Maximum:
0.3A
Maximum DC Input Voltage:
Not App
Input Frequency:
47 to 63 Hz
Output Voltage:
9 VDC
Typical Inrush Current:
15/30A(Max) at 115/230Vac
Safety Approvals:
CCC, cUL, GS, PSE, RCM, TUV, UL
Output Connector Type:
Barrel - Female
Output Type:
Fixed
Dimension:
64 x 40.5 X30 mm
Life Cycle:
Discontinued & Replaced
AC/DC Adapter - Wall Mount - 6 Watts: 9V @ 0.67A ++ NO AC INPUT BLADES ++ Lvl V
Search Keywords:
EMSA090067KP5PSZ
  This product is not in stock and cannot be back-ordered
Please Note: Tariffs may apply for U.S. shipments

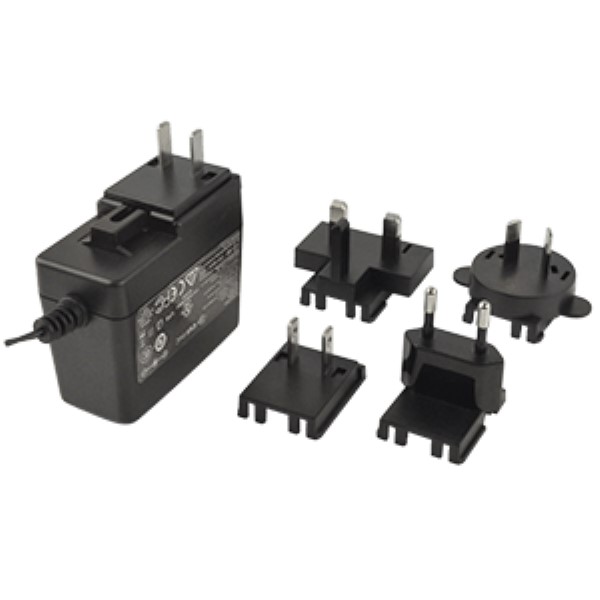

RECOMMENDED REPLACEMENT
SMI18-9-K-P5
