EMSA050300-P5P-SZ by cui inc.
Image is representational - see mfr. specs

EMSA050300-P5P-SZ

CUI Inc.

AC/DC Adapter - Wall Mount - 18 Watts: 5V @ 3A - AU_CN_EU_NA_UK Input Blade Kit - Lvl V

RoHS Compliant
Packaging
Accessories
Discontinued & Replaced
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
CUI Inc.
Part No:
EMSA050300-P5P-SZ
RoHS:
Yes
HTS:
8504409510
COO:
CN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Minimum AC Input Voltage:
90
Maximum Input Current:
Not Spec'd
Adapter Color:
Black
Line Regulation:
1.00 %
Minimum Input Voltage:
90Vac
Power:
18 W
Output Connector Angle:
Straight
Power Indicator:
No
Output Voltage:
5 VDC
Output Type:
Fixed
Minimum DC Input Voltage:
Not App
Input Voltage:
90 to 264Vac
Dimensions L x W x H:
74.0 x 43.5 x 35.3 mm
Maximum DC Input Voltage:
Not App
Dimensions LxWxH:
2.92 x 1.72 x 1.39In
Overload Protection:
No
Typical Inrush Current:
30/60A(Max) at 115/230Vac
Package Type:
Wall Plug
Typical Hold-Up Time:
Not Spec'd
Style:
Interchangeable WallMount
MOPP:
Not App
CoC Tier:
No
Dimension:
74 x 43.5 x 35.3 mm
Safety Class:
None
AC Input Voltage:
90 to 264
Mounting:
External
Operating Temperature:
0 to 40 °C
Dimensions L x W x H(in):
2.92 x 1.72 x 1.39 in
Ripple & Noise:
150 mV
Grade:
Commercial
Maximum Output Current:
3.0 A
Safety Approvals:
CCC, CE, cUL, GS, PSE, RCM, TUV, UL
Input Connector Type:
Interchangeable-Kit
Minimum Isolation Voltage:
4242Vdc/3000Vac
Power Rating:
18 W
Short Circuit Protection:
Yes
Input Frequency:
47 to 63 Hz
Output Connector Type:
Barrel - Female
Type:
Regulated-Switching
Maximum AC Input Voltage:
264
Number of Outputs:
1
Output Connector Diameters:
2.1 x 5.5 mm
DOE Efficiency Level:
V
Maximum Input Voltage:
264Vac
Family:
EMSA-18W
Load Regulation:
5.00 %
PFC:
No
Output Current:
3.0 A
Mounting Style:
External
Output Cord Length:
1.53m (60.3in)
Output Connector Polarity:
Center Positive
Thermal Protection:
No
Minimum Load (Amps):
0
AC Input Current - Typical:
Not Spec'd
Maximum Output Power:
18 W
Efficiency:
Not Spec'd
Input/Output Type:
AC/DC
DC Input Voltage:
Not App
AC Input Current - Maximum:
0.6A
Over Voltage Protection:
Yes
Life Cycle:
Discontinued & Replaced
AC/DC Adapter - Wall Mount - 18 Watts: 5V @ 3A - AU_CN_EU_NA_UK Input Blade Kit - Lvl V
Search Keywords:
EMSA050300P5PSZ
  This product is not in stock and cannot be back-ordered
Please Note: Tariffs may apply for U.S. shipments

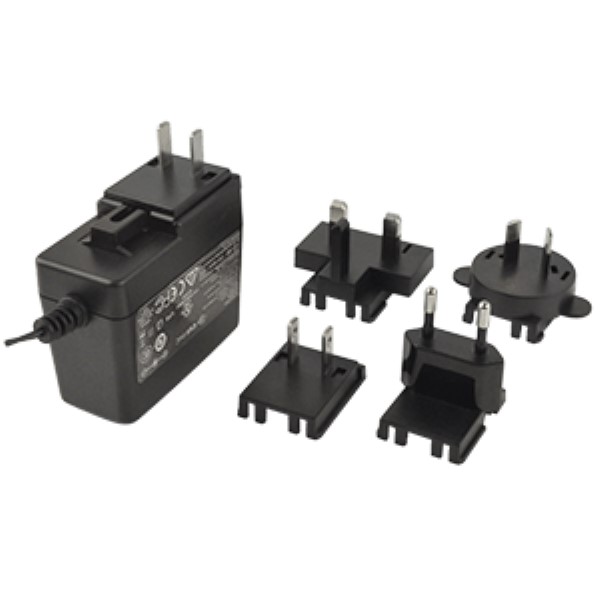

RECOMMENDED REPLACEMENT
SMI18-5-V-P5
