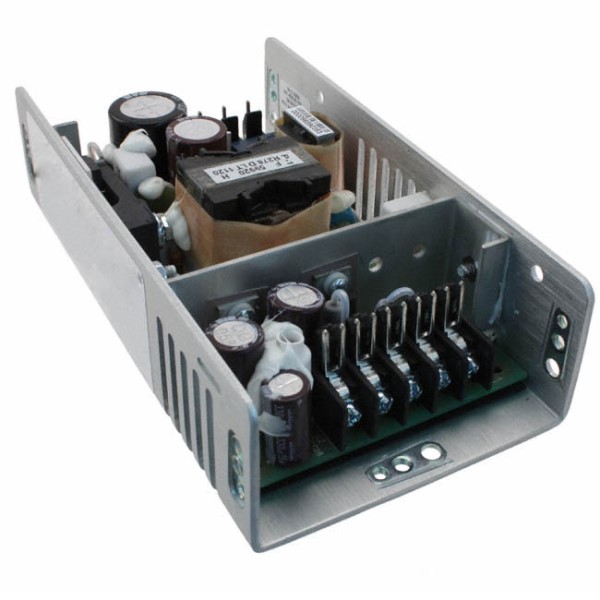

MAP55-4001G by bel power solutions
Image is representational - see mfr. specs
DATA SHEET

MAP55-4001G

Bel Power Solutions

AC/DC Power Supply - Quad-OUT - 5V/24V/-12V/12V - 6A/1.5A/0.5A/0.5A - 55W - 11-Pin. .. see full description

RoHS Compliant
Bulk Packaging
Accessories
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
Bel Power Solutions
Part No:
MAP55-4001G
RoHS:
Yes
HTS:
8504409520
COO:
SK
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
20
Package Type:
Bulk
Output Connector Type:
Screw Terminal Block
Style:
Open Frame
Type:
Regulated
Family:
MAP55
Minimum DC Input Voltage:
N/A
Output Voltage:
5,24,-12,12 V
AC Input Voltage:
N/A
Mounting:
Screw
Supplier Temperature Grade:
N/A
Input Frequency:
47 to 63 Hz
Output Type:
Fixed
Operating Temperature:
0 to 50 °C
DC Input Voltage:
N/A
Number of Outputs:
4
Input Connector Type:
Screw Terminal Block
Minimum AC Input Voltage:
90 V
Supplier Package:
N/A
Maximum AC Input Voltage:
264 V
Dimension:
83.1 x 152.4 x 40.6 mm
Minimum Isolation Voltage:
2600 VDC
Pin Count:
11
Maximum DC Input Voltage:
N/A
Maximum Input Current:
1.6(rms)(Typ) A
Maximum Output Current:
6,1.5,0.5,0.5 A
Efficiency:
73(Min) %
Maximum Output Power:
55 W
Packaging:
N/A
Power your device with direct current by using this MAP55-4001G AC to DC power supply from Bel Power Solutions to convert an alternating current source to a direct current supply. It has a voltage of 5V/24V/-12V/12V and maximum output power of 55 W. This part's 4 outputs can handle a current up to 6A/1.5A/0.5A/0.5A. This part has a minimum operating temperature of 0 °C and a maximum of 70 °C.
Search Keywords:
MAP554001G
IN STOCK: 0
Factory Lead-Time
16 Weeks
Price (USD)
Quantity
Unit Price
Ext. Price
1
$203.17
$203.17
3
$200.00
$600.00
5
$199.00
$995.00
10 +
$198.00
$1,980.00
Please Note: Tariffs may apply for U.S. shipments
Product Guides
PDF Datasheet
