MAP130-4010 by bel power solutions
Image is representational - see mfr. specs
DATA SHEET

MAP130-4010

Bel Power Solutions

AC/DC Power Supply Quad-OUT 5V/12V/-5V/-12V 20A/5A/1A/3A 130W

RoHS Compliant
Packaging
Accessories
Discontinued & Replaced
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
Bel Power Solutions
Part No:
MAP130-4010
RoHS:
Yes
HTS:
8504409520
COO:
SK
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Dimension:
215.9 x 114.3 x 50.8 mm
Minimum Isolation Voltage:
2600 VDC
Operating Temperature:
0 to 70 °C
Number of Outputs:
4
Pin Count:
15
AC Input Voltage:
90 to 132,175 to 264 V
Output Voltage:
5,12,-5,-12
Maximum Output Current:
20,5,1,3 A
Maximum Output Power:
130 W
Supplier Temperature Grade:
N/A
Style:
Open Frame
Supplier Package:
N/A
Input Connector Type:
Molex Connector
DC Input Voltage:
N/A
Type:
Switching
Packaging:
N/A
Efficiency:
80 %
Input Frequency:
47 to 63 Hz
Family:
MAP130-4
Mounting:
Surface Mount
Life Cycle:
Discontinued & Replaced
AC/DC Power Supply Quad-OUT 5V/12V/-5V/-12V 20A/5A/1A/3A 130W
Search Keywords:
MAP1304010
  This product is not in stock and cannot be back-ordered
Please Note: Tariffs may apply for U.S. shipments
RECOMMENDED REPLACEMENT

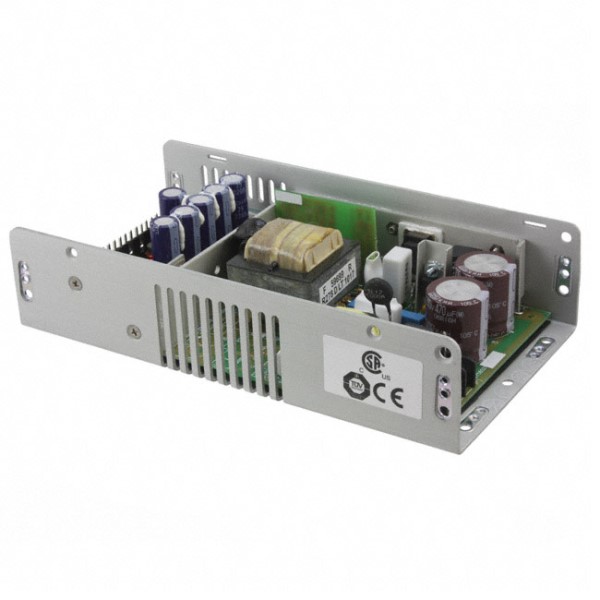

MAP130-4010G
MAP130-4010G
VIEW PRODUCT
