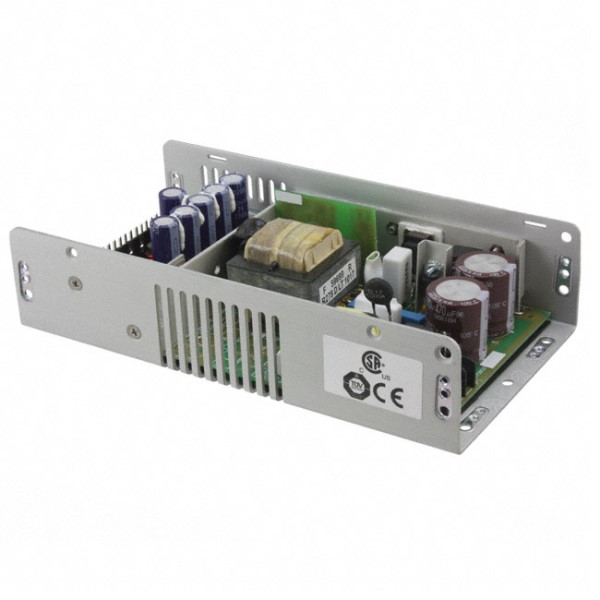

MAP130-1024G by bel power solutions
Image is representational - see mfr. specs
DATA SHEET

MAP130-1024G

Bel Power Solutions

AC/DC Power Supply Dual-OUT 24V/28V 6.25A/5.4A 130W 15-Pin .. see full description

RoHS Compliant
Packaging
Accessories
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
Bel Power Solutions
Part No:
MAP130-1024G
RoHS:
Yes
HTS:
8504409520
COO:
SK
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
20
Maximum Output Power:
130 W
Maximum Input Current:
3.3(rms)(Typ) A
Mounting:
Screw
Supplier Package:
N/A
Input Frequency:
47 to 63 Hz
Maximum DC Input Voltage:
N/A
Style:
U Frame
Output Voltage:
24,28 V
Maximum Output Current:
6.25,5.4 A
Pin Count:
15
Operating Temperature:
0 to 70 °C
Supplier Temperature Grade:
N/A
Number of Outputs:
2
Maximum AC Input Voltage:
132,264 V
Dimension:
215.9 x 114.3 x 50.8 mm
Input Connector Type:
Screw Terminal Block
DC Input Voltage:
N/A
AC Input Voltage:
115,230 V
Type:
Regulated
Efficiency:
71(Typ) %
Minimum AC Input Voltage:
90,175 V
Packaging:
N/A
Output Connector Type:
Screw Terminal Block
Minimum DC Input Voltage:
N/A
Output Type:
Fixed
Minimum Isolation Voltage:
4242 VDC
Family:
MAP130
The MAP130-1024G is a highly efficient AC/DC power supply from BEL Power Solutions. It offers a dual output of 24V and 28V, providing a maximum of 6.25A and 5.4A respectively. With a power rating of 130W, it is capable of delivering reliable and stable power to a range of applications. The power supply features a 15-Pin connector, ensuring a secure and efficient connection. Designed with industry-leading technology, this power supply offers exceptional performance, durability, and safety. Whether you need to power telecommunications equipment, industrial automation systems, or other sensitive devices, the MAP130-1024G is an ideal choice.
Search Keywords:
MAP1301024G
IN STOCK: 0
MOQ for out of Stock Qty:
15
Factory Lead-Time
16 Weeks
Price (USD)
Quantity
Unit Price
Ext. Price
1
$398.28
$398.28
5
$396.29
$1,981.45
10
$394.31
$3,943.10
15
$392.34
$5,885.10
30
$390.38
$11,711.40
45
$388.43
$17,479.35
60 +
$386.48
$23,188.80
Please Note: Tariffs may apply for U.S. shipments
Product Guides
PDF Datasheet
