ECS Inc. International's Most Popular MultiVolt™ Quartz Oscillators

ECS Inc.'s series of quartz-based MultiVolt™ oscillators offer better jitter and phase noise performance as compared to SAW- or MEMS-based oscillators at lower cost. MultiVolt™ oscillators can operate across supply voltage ranges or static supplies to make them the most flexible oscillators available to aide your design efforts.

  • Industry standard packages and footprints available: 1.6 mm x 1.2 mm, 2.0 mm x 1.6 mm, 2.5 mm x 2.0 mm, 3.2 mm x 2.5 mm, 5.0mm x 3.2 mm, 7.0 mm x 5.0 mm
  • MultiVolt™ oscillators options available are HCMOS, 32.768 kHz, tight stability down to ±5ppm, low jitter <50fS, low current 10µA standby 2.2mA, AEC-Q200 and HCMOS and clipped sine wave TCXOs with extraordinary stability.
  • Frequency range of 32.768 kHz to 160 MHz
  • Can operate across a 1.6 V to 3.6 V supply voltage range or on a static supply compatible with 1.8 V, 2.5 V, 3.0 V or 3.3 V
  • Operating temperature ranges of -10ºC ~ +105ºC, -40ºC ~ +105ºC, -40ºC ~ +85ºC, -40ºC ~ +125ºC
  • Ideal for IoT, industrial, automotive, wireless and mobile, storage device, real time clocks, medical (non-life sustaining), general microprocessors, video, telecom, RF applications and more.
View
Show products manufactured by ECS INC. International
Authorized Distributor
Information
Product Range Live Chat Tech Support

16 PRODUCT RESULTS FOR ""

Filter Results

16 Products

    ECS-2016MVQ-120-BP-TR
    Data Sheet
    ECS-2016MVQ-120-BP-TR ECS INC. International
    Crystal Oscillator - 12MHz - Enable/Disable - CMOS - 1.7 to 3.6V - ±50ppm -40°C to 105°C - 6mA - 4-SMD - 0.079" ...
    VIEW PRODUCT
    12 Weeks
    1,000
    $0.865
    3,000
    $0.861
    5,000
    $0.857
    8,000
    $0.852
    10,000
    $0.848
    ECS-2520MV-250-BN-TR
    Data Sheet
    ECS-2520MV-250-BN-TR ECS INC. International
    Crystal Oscillator - 25MHz - Standby - CMOS - 1.6 to 3.6V - ±50ppm -40°C to 85°C - 7mA - 4-SMD - 0.098" x 0.079" ...
    VIEW PRODUCT
    10 Weeks
    500
    $0.720
    1,000
    $0.710
    3,000
    $0.678
    6,000
    $0.663
    9,000
    $0.628

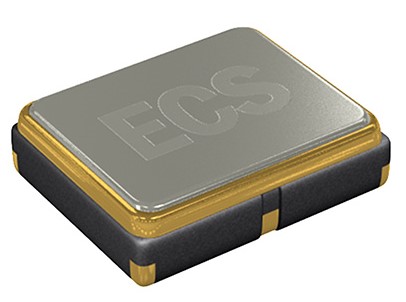

    ECS-2520MV-500-BN-TR
    Data Sheet
    ECS-2520MV-500-BN-TR ECS INC. International
    Crystal Oscillator - 50MHz - Standby - CMOS - 1.6 to 3.6V - ±50ppm -40°C to 85°C - 8mA - 4-SMD - 0.098" x 0.079" ...
    VIEW PRODUCT
    10 Weeks
    500
    $0.710
    1,000
    $0.700
    3,000
    $0.693
    6,000
    $0.664
    9,000
    $0.640
    ECS-2520MVQ-240-BP-TR
    Data Sheet
    ECS-2520MVQ-240-BP-TR ECS INC. International
    Crystal Oscillator - 24MHz - Enable/Disable - CMOS - 1.7 to 3.6V - ±50ppm -40°C to 105°C - 7mA - 4-SMD - 0.098" x ...
    VIEW PRODUCT
    18 Weeks
    1,000
    $0.754
    3,000
    $0.734
    5,000
    $0.701
    8,000
    $0.697
    10,000
    $0.685

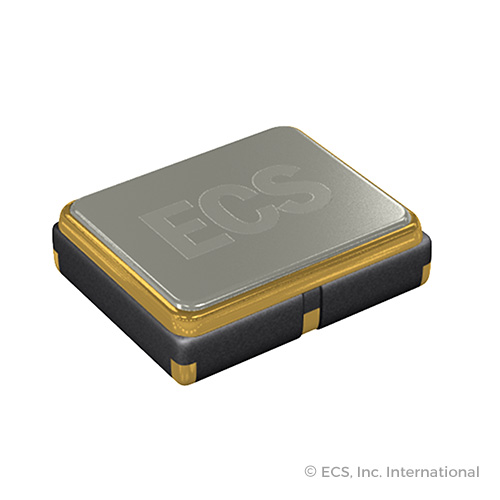

    ECS-2520MVQ-250-BS-TR
    Data Sheet
    ECS-2520MVQ-250-BS-TR ECS INC. International
    Oscillator - 25.000MHz - 2.5 x 2.0mm - +1.6 to 3.6V - ±50 ppm -40°C to +125°C - Low Current
    VIEW PRODUCT
    18 Weeks
    1,000
    $0.760
    3,000
    $0.734
    5,000
    $0.670
    8,000
    $0.667
    10,000
    $0.656

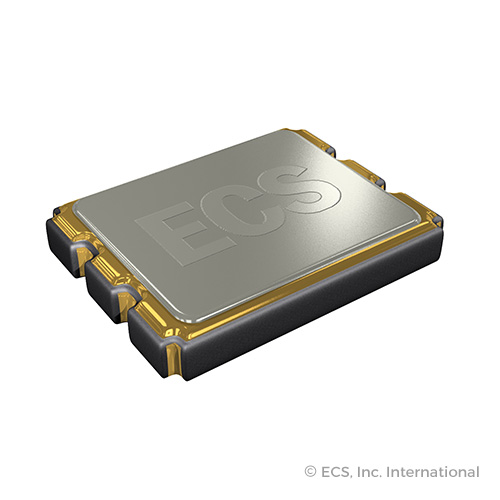

    ECS-3225MV-260-CN-TR
    Data Sheet
    ECS-3225MV-260-CN-TR ECS INC. International
    Crystal Oscillator - 26.000MHz - CMOS - Enable/Disable - 1.6 to 3.6V - ±25ppm -40°C to 85°C - 4mA - 4-SMD - 0.098 ...
    VIEW PRODUCT
    10 Weeks
    1,000
    $0.588
    3,000
    $0.573
    5,000
    $0.570
    8,000
    $0.567
    10,000
    $0.564
    ECS-3225MVQ-250-BP-TR
    Data Sheet
    ECS-3225MVQ-250-BP-TR ECS INC. International
    Crystal Oscillator - 25.000MHz - CMOS - Enable/Disable - 1.7 to 3.6V - ±50ppm -40°C to 105°C - 4mA - 4-SMD - 0.09 ...
    VIEW PRODUCT
    16 Weeks
    1,000
    $0.679
    3,000
    $0.649
    5,000
    $0.627
    8,000
    $0.624
    10,000
    $0.618

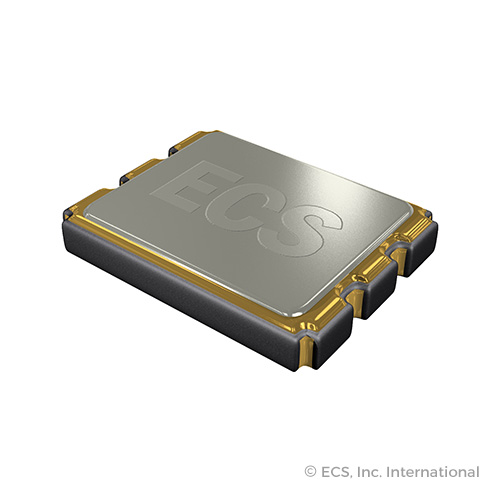

    ECS-3225MVQ-250-CN-TR
    Data Sheet
    ECS-3225MVQ-250-CN-TR ECS INC. International
    Crystal Oscillator - 25.000MHz - CMOS - Enable/Disable - 1.7 to 3.6V - ±25ppm -40°C to 85°C - 4mA - 4-SMD - 0.098 ...
    VIEW PRODUCT
    16 Weeks
    1,000
    $0.649
    3,000
    $0.586
    5,000
    $0.578
    8,000
    $0.569
    10,000
    $0.560

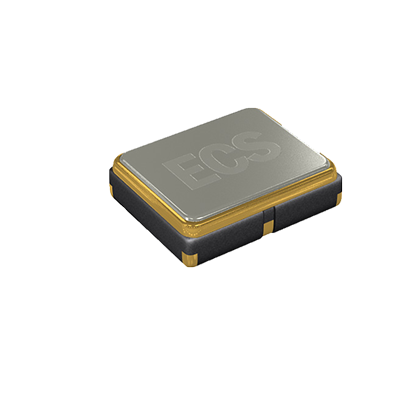

    ECS-327ATQMV-AS-TR
    Data Sheet
    ECS-327ATQMV-AS-TR ECS INC. International
    Crystal Oscillator - 32.768kHz - Enable/Disable - HCMOS - 1.62 to 3.63V - ±100ppm -40°C to 125°C - 0.2mA - 4-SMD ...
    VIEW PRODUCT
    10 Weeks
    250
    $0.730
    500
    $0.715
    1,000
    $0.705
    3,000
    $0.698
    6,000
    $0.694

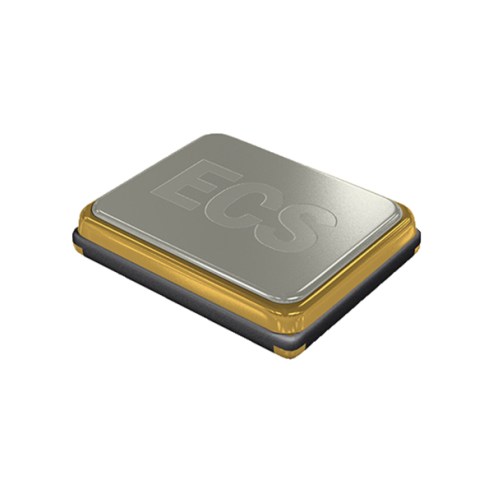

    ECS-327MVATX-1-CN-TR
    Data Sheet
    ECS-327MVATX-1-CN-TR ECS INC. International
    Crystal Oscillator - 32.768kHz - 1.6 to 3.63V - 25ppm -40°C+85 - SMD - 2.0 x 1.6mm
    VIEW PRODUCT
    16 Weeks
    1,000
    $0.618
    3,000
    $0.572
    5,000
    $0.547
    8,000
    $0.541
    10,000
    $0.527
